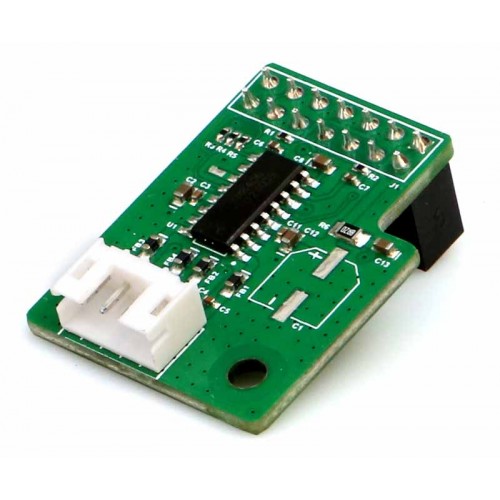

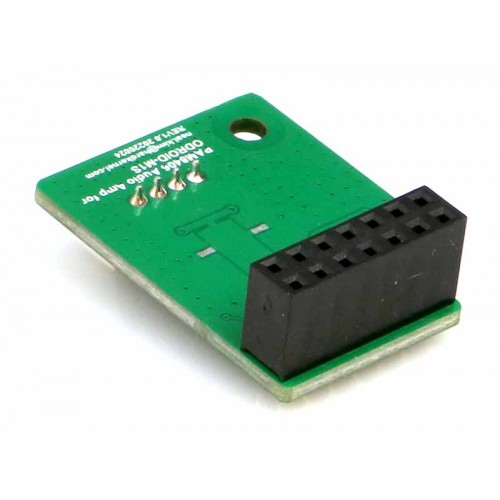

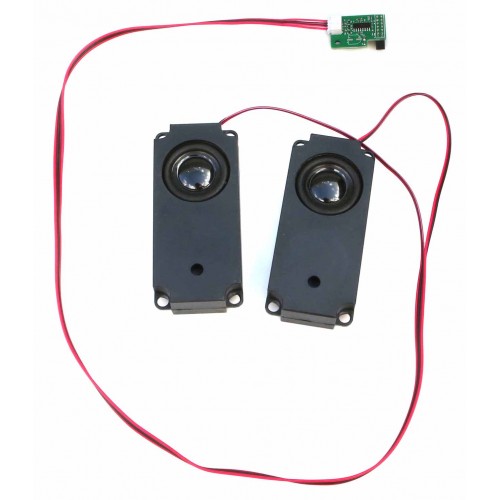

This is a speaker kit with on-board sound PAM8406 amplifier that can be used by plugging directly into the 14-pin header connector of ODROID-M1S.
Compatible with ODROID-M1S Only
 |
- System power noise may affect the audio circuitry, resulting in background noise in the audio output.
- Therefore, we recommend that our customers do not use this board in applications requiring high sound quality.

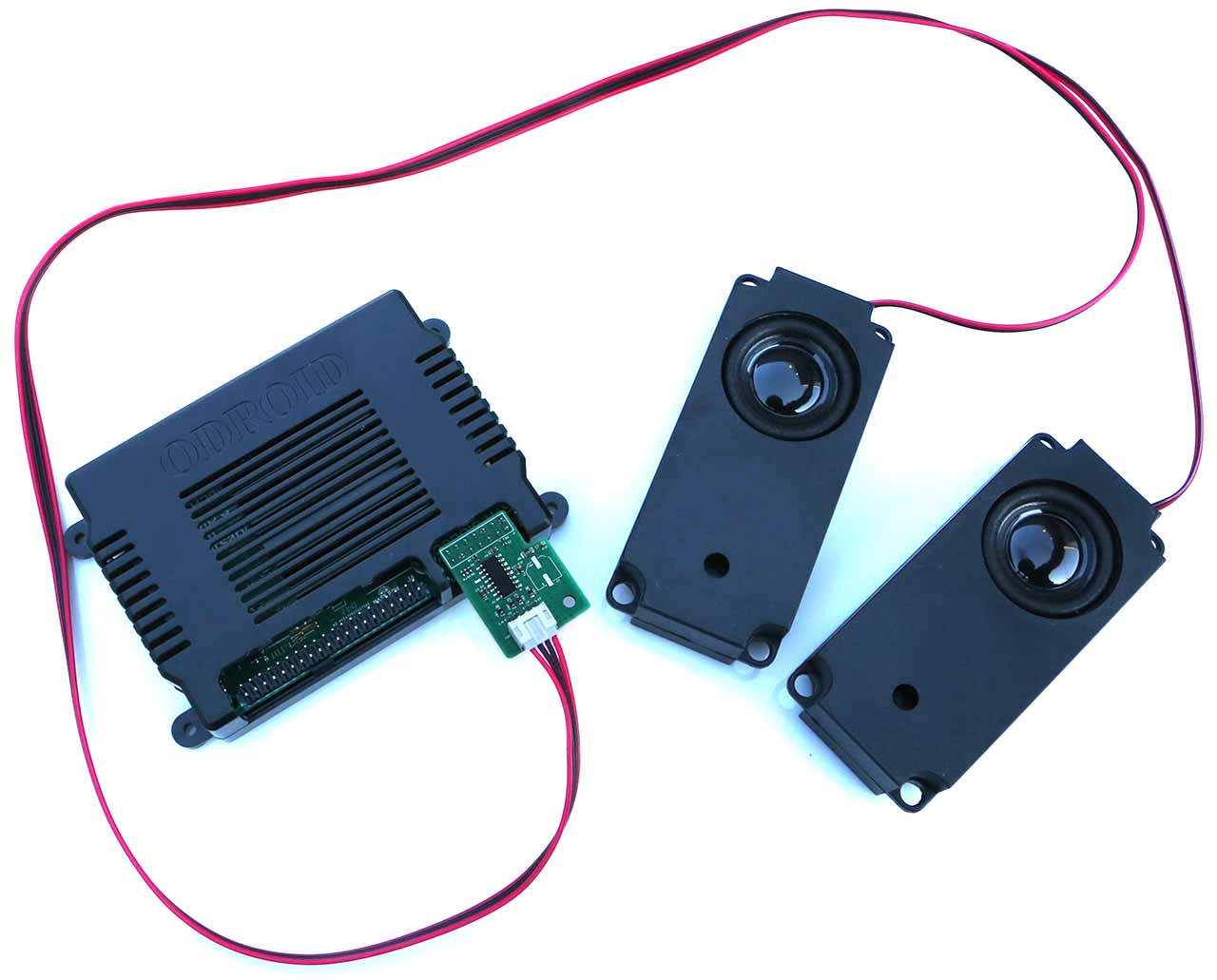

- You have to cut out parts of the 14-pin on the upper case to mount this Speaker Kit on the ODROID-M1S.
Speaker Specification
Rated Impedance : | 8Ω ±15% ( At 1kHz 1.0 Vrms ) |
Resonance Freq : | Fb – 95Hz ±20%, Fo – 400Hz ±20% ( Without Baffle ) |
Output S.P.L. : | 88 ±3dB ( At 0.1m 0.1w / 0.6, 0.8, 1.0, 1.2KHz Average ) |
Rated Power : | 5.0W ( At 6.32 Vrms ) |
Max Power : | 6.0W ( At 6.93 Vrms ) |
Frequency Range : | Fo — 20kHz |
Operation : | Must be Normal at Rated Frequency Range ( Program Source 5.0W FO ~ 10kHz ) |
THD : | 10% Max ( Rated Power Input 1000Hz ) |
Magnet : | NdFeB |
Weight : | 0.15g |
WIKI : Click here for instruction on usage
Speaker Kit for Odroid M1S [10011]
- Brand: Hard Kernel
- Product Code: Speaker Kit for Odroid M1S
- Availability: In Stock
-
13.80€
- Ex Tax: 11.50€
