This “Case Type 2” is designed for the user who needs high a performance network machine, but with a lower storage requirement than the Type 1 Case.

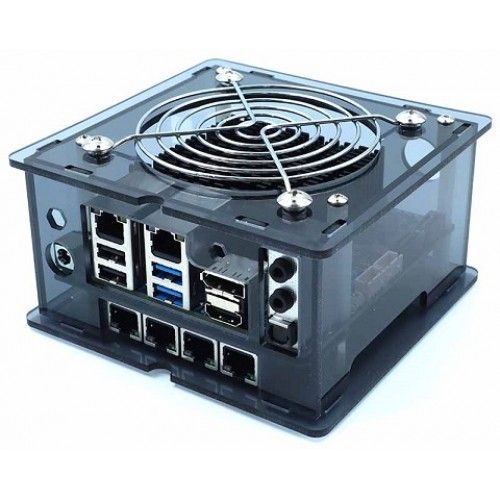

This “Case Type 6” is designed for the user who needs high performance network with a minimal or regular range storages. Basically, this is the fanless design and the heated air from a processor can be blow out through the 92mm cooling fan hole on top of this enclosure. But you also can install a 92x92mm standard PC cooling fan (optional) at the hole if the decent power for the fan is supplied.
- Supported storages:
- On-board eMMC 5.1 module
- On-board M.2 NVMe (NGFF-2280)
- This case is compatible with the H2 Net Card, which is not included in the package.
- Any SATA storage device can’t be installed in the Type 6 cases.
- The disk drive mounting screws (M3x6mm) are included in the package.
- The power and reset switches are accessible through the hole at the front
- Optional LED Power Button (diameter: 16mm) can be installed at the front
- Size : 128 (L) x 132 (W) x 68 (H) mm
- A. Top panel
- B. Bottom panel
- C. Front panel
- D. Left panel
- E. Right panel
- F. Back panel
- G. 1 x 92mm Stainless Cooling Fan Grill
- H. 8 x 6mm M3 Truss Head Bolts
- I. 4 x M5 Nuts
- J. 4 x M5 Truss Head Bolts
- K. 4 x 20mm (M) PCB Supports
- L. 2 x 16x9mm (M) Steel PCB Supports
- M. 4 x 40mm (F) PCB Supports
- N. 4 x Rubber Feet (Round / Clear)
*Please mind that photo includes spare parts image for some supports and screws. Standard part quantity for this product is same as Package contents description above.
