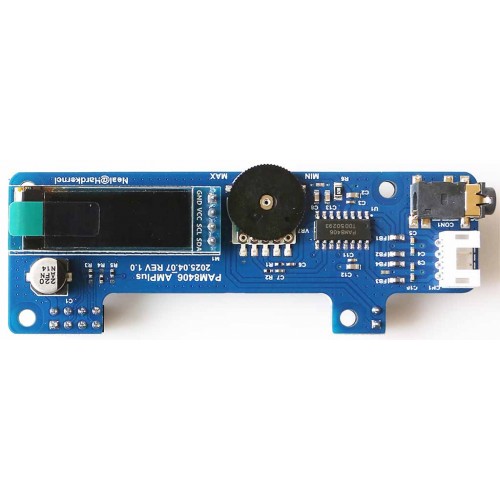

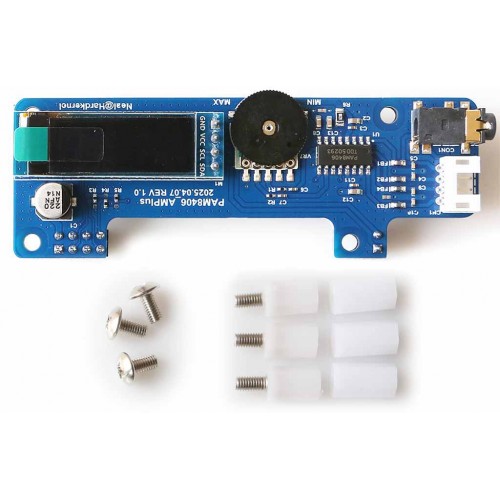

Compatible with ODROID-C5 / ODROID-C4, this is a Audio amplifier board with on-board sound PAM8406 amplifier.

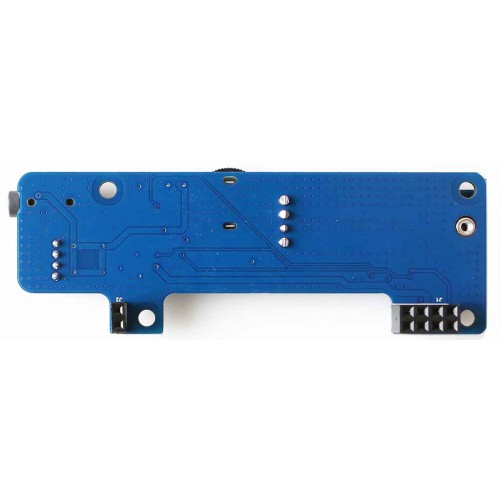

It can be used by plugging directly into the 8-pin of the 40-pin header connector and 2-pin Audio DAC line-out header connector of ODROID-C5 / ODROID-C4.
- Volume control to out of speaker and headphone simultaneously.
- Display 0.91 inch 128 x 32 pixels OLED board via I2C.

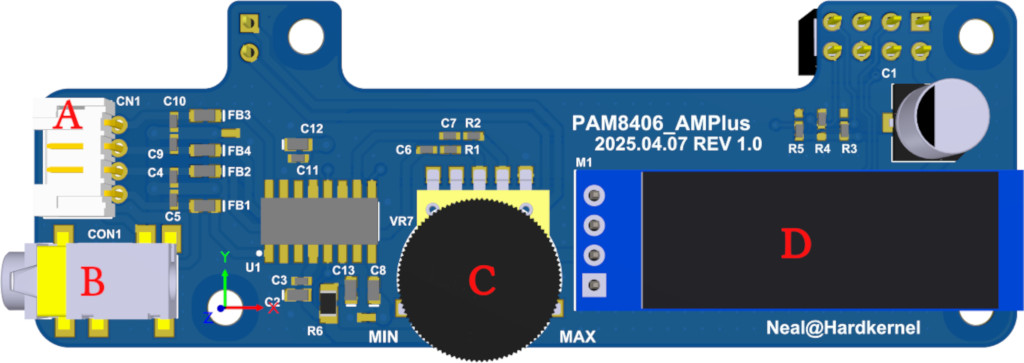

A | Stereo Speaker Jack |
B | Headphone Jack |
C | Audio Volume |
D | 0.91 inch OLED ( 128 x 32 Pixels) |
Wiki Link: https://wiki.odroid.com/accessory/add-on_boards/audio_amplifier_board
Audio Amplifier Board for C5 / C4 [120005]
- Brand: Hard Kernel
- Product Code: Audio Amplifier Board for C5 / C4
- Availability: In Stock
-
13.80€
- Ex Tax: 11.50€
