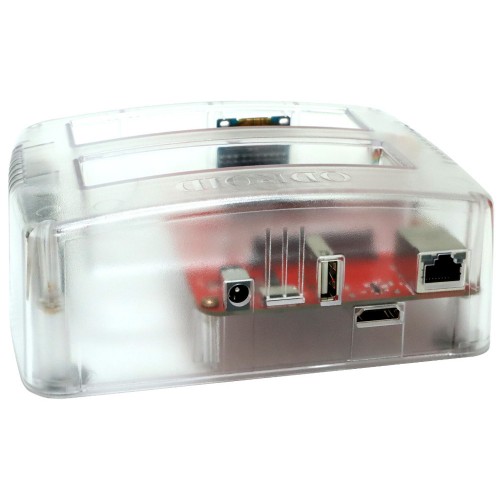

The ODROID HC4 with OLED + RTC Battery  - which we call "The Toaster" - is an updated and much more powerful new revision of our popular Home Cloud line of NAS server systems. The "toaster" form factor accepts 2 x 3.5”, 2 x 2.5”” mechanical HDD or SSD storage devices, or any combination of the two.

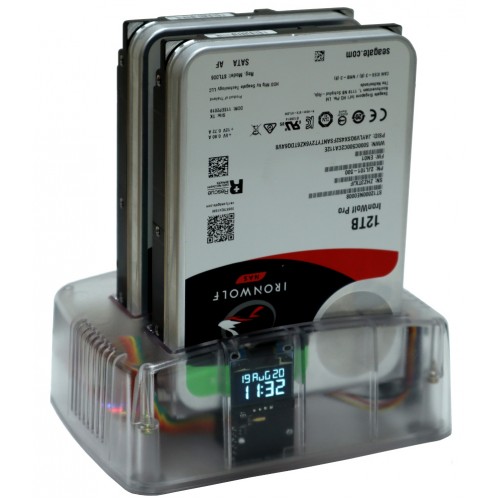

ODROID-HC4 accepts 2 x 3.5” or 2 x 2.5”” mechanical HDD or SSD storage devices. You can also mix and match using one mechanical and one SSD. With our implementation of Linux LVM or mdadm Soft-RAID, you can combine two disks in RAID 0, RAID 1 or optimize IO with a large disk using one mechanical drive for the storage, and an SSD for disk caching.

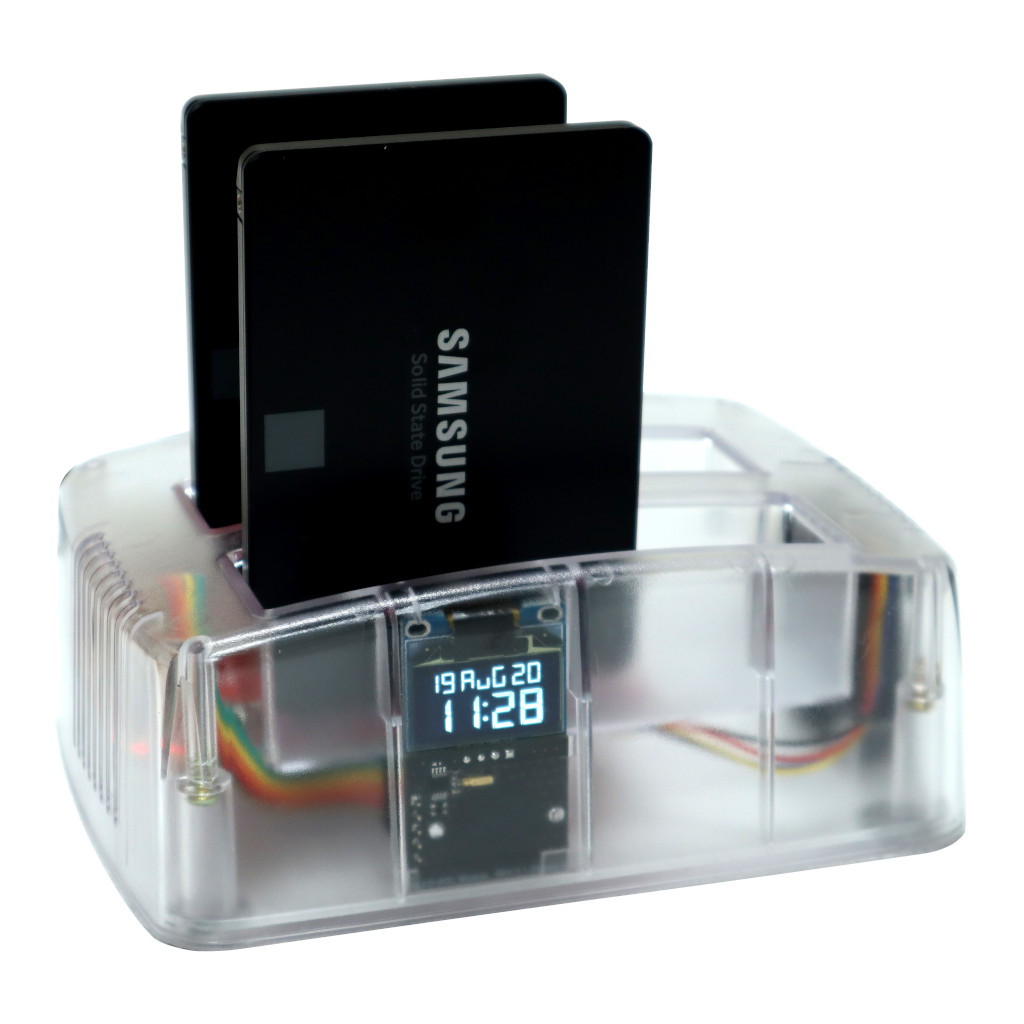

This is the HC4 unit with RTC + OLED. It is pictured with 2x SSD drives (not included) and features a dual slot mechanism at the top allowing you to plug in either a SATA 3 SSD or a SATA 3 HDD drive.  This includes an RTC (Real Time Clock) and an OLED display built in.


SoC – Amlogic S905X3 quad-core Cortex-A55 processor @ 1.8 GHz with Mali-G31 MP2 GPU

System Memory – 4GB DDR4

Bootlloader Flash - 128 Mbit SPI flash for bootloader like Petitboot

MicroSD Storage - UHS-1 compatible MicroSD card slot for the operating system

HDD / SSD Ports - 2x SATA III ports implemented via JMB582 ASM1061 PCIe to SATA controller

Networking – Gigabit Ethernet RJ45 port via Realtek RTL8211F PHY

Video Output – HDMI 2.0 up to 4K UHD @ 60 Hz

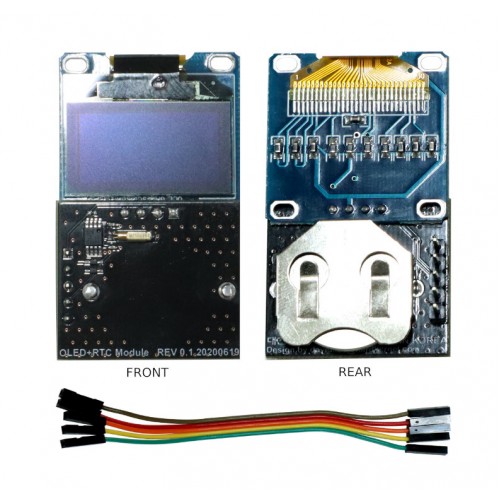

Display – 7-pin header with SPI and I2C for optional 1-inch OLED display + RTC

USB – 1x USB 2.0 host port

Debugging – 4-pin UART header for serial console

Misc – IR receiver, 2x system LED’s, boot switch, fan header

Power Supply – 15V via power barrel

Dimensions –  84 x 90.5 x 25.0 mm

Weight – 280 grams including heatsink, fan and case

Odroid-HC4 with OLED + Battery [77605]

  • Brand: Hard Kernel
  • Product Code: Odroid-HC4 with OLED + Battery
  • Availability: In Stock
  • 126.04€

  • Ex Tax: 105.03€

Available Options
