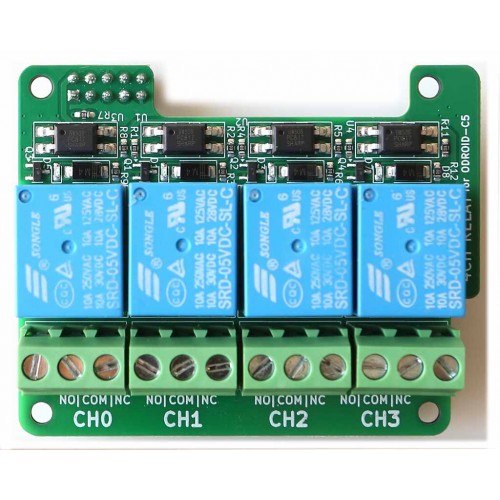

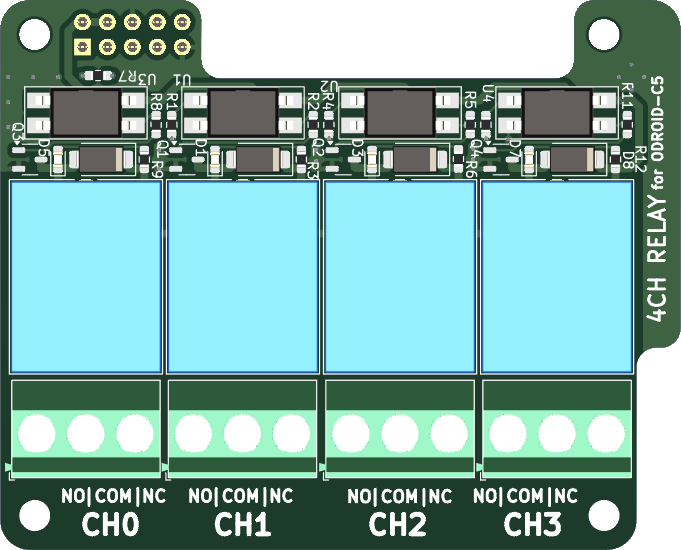

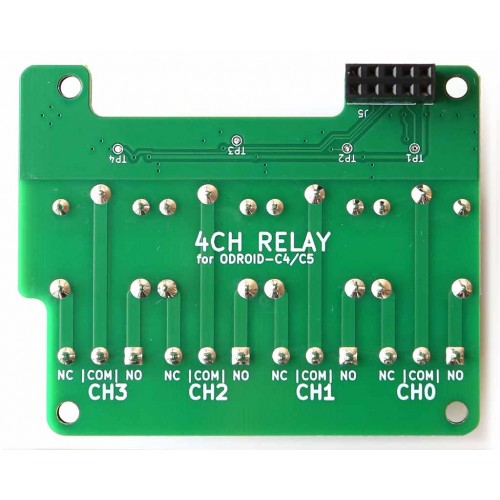

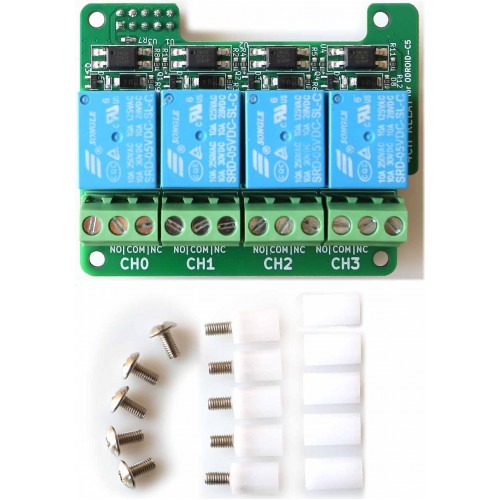

The 4Ch Relay Board for C5 is a 4-channel relay board which allow the user to easily control high-voltage and high-current external devices through the GPIO pins of their Odroid C5 board.

• This add-on board is for the ODROID-C5 only.

• 4-channel relay system is controlled via the GPIO pins of the board

• The GPIO pins are isolated using a PC817 photocoupler to prevent interference from the user-connected high-voltage circuit.

Form Factor Board dimension : 56 (L) x 69 (W) x 30 (H) mm
