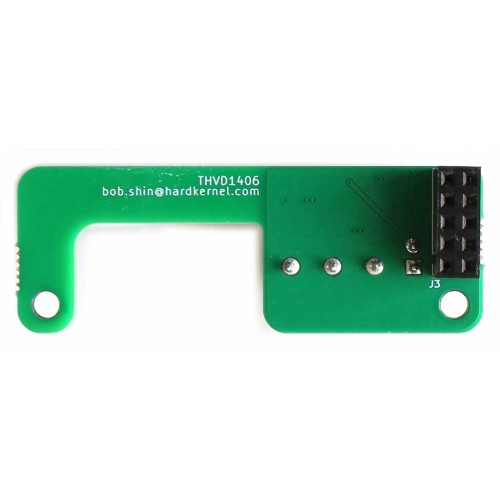

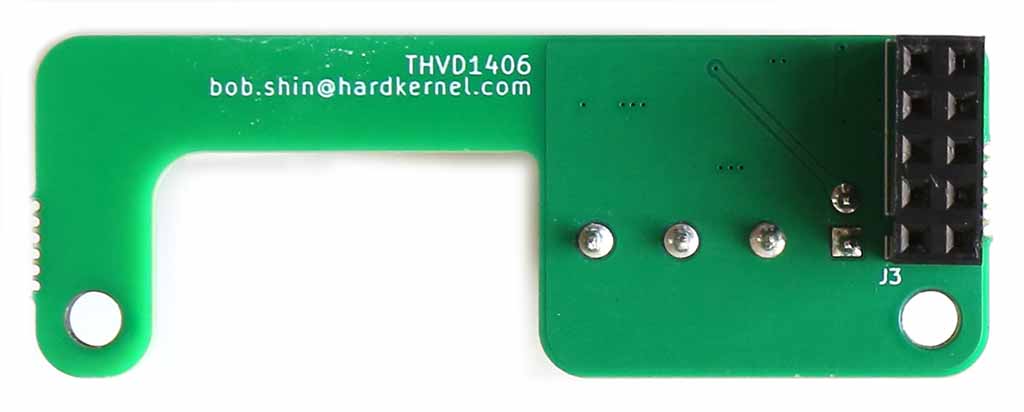

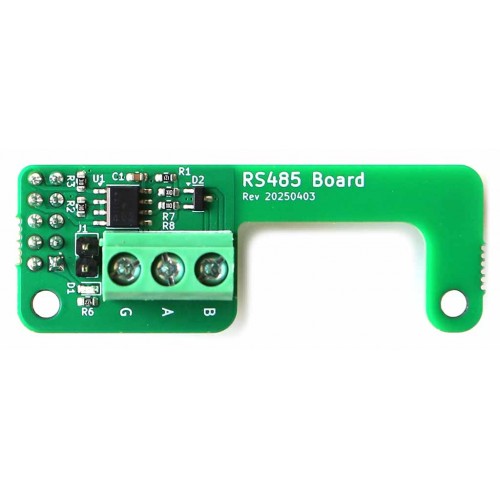

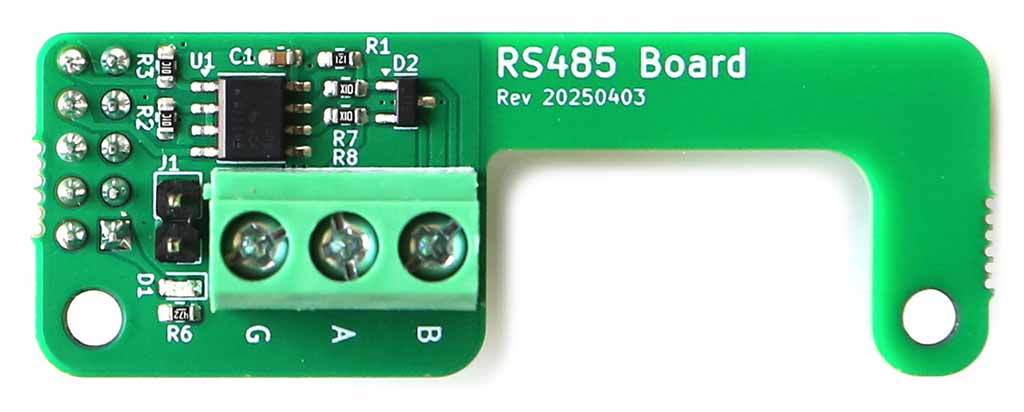

This board is designed to provide RS-485 control to ODROID single board computers, it is easily attachable to GPIO headers and accessible through UART bus.
- Texas Instruments THVD1406
- Half-duplex RS-485
- Auto-direction control using the data input pin (No control pin required)
- Maximum Data rates: 500 kbps
- Form Factor Board dimension : 56 (L) x 20 (W) x 21 (H) mm

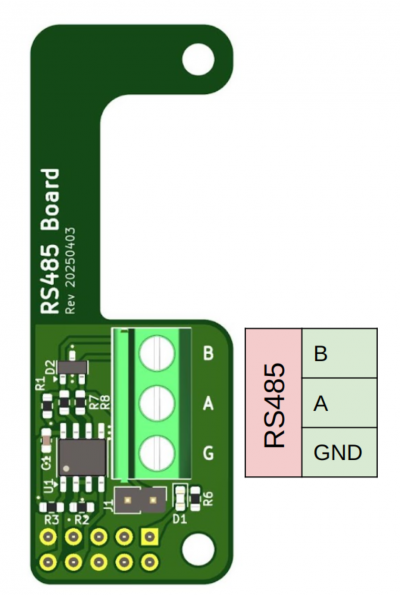

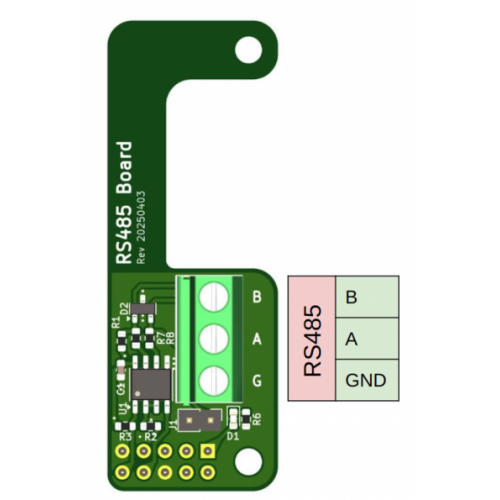

- I/O 1x RS-485 bus
- Built-in termination resistor (Use by shorting the j1 connector)
RS-485 Add on Board for C5 [120003]
- Brand: Hard Kernel
- Product Code: RS-485 Add on Board for C5
- Availability: In Stock
-
11.04€
- Ex Tax: 9.20€
