The ODROID-GO Advance is the next evolution of our best-selling ODROID-GO system. Taking it's cue from the designs of the Gameboy Advance and Gameboy Micro and using the Rockchip RK3326 processor, this build-it yourself handheld console kit is designed to run a huge lineup of Videogame System Emulators and offers a massive step up in both speed and functionality over the previous ODROID-GO generation.


**NEXT STOCK AVAILABLE MAY 2020 - AVAILABLE FOR PREORDER NOW**



The Emulator Supports:-

Atari 2600
Atari 5200
Atari 7800
Atari lynx
Game Gear
Gameboy
Gameboy Advance
Gameboy Color
Sega Master System
Sega Megadrive

NES (Nintendo Entertainment System)
PC Engine
PC Engine CD
Playstation
SEGA CD
SNES (Super Nintendo Entertainment System)
PSP (Playstation Portable)
And more!


System Specification


ProcessorCPU : RockChip RK3326(Quad-Core ARM Cortex-A35 1.3GHz)
GPU : Mali-G31 Dvalin
Memory1GB (DDR3L 786Mhz, 32 Bits bus width)
StorageSPI Flash(16Mbytes Boot), Micro SD Card slot(UHS-1 Capable interface)
Display3.5inch 320×480 TFT LCD (ILI9488, MIPI interface)
AudioEarphone Jack, 0.5Watt 8Ω Mono
BatteryLi-Polymer 3.7V/3000mAh, Up to 10 hours of continuous game playing time
DC Jack2.5mm diameter DC plug: A USB charging cable is included in the package.
External I/OUSB 2.0 Host x 1, 10Pin port(I2C, GPIO, IRQ at 3.3Volt)
Input ButtonsF1, F2, F3, F4, F5, F6, A, B, X, Y, Direction Pad, Left Shoulder, Right Shoulder, Analog joypstick
Power consumptionPower consumption Game emulation: 100~115mA, Sleep mode: 5.3~5.8mA, Power off: 0.1mA

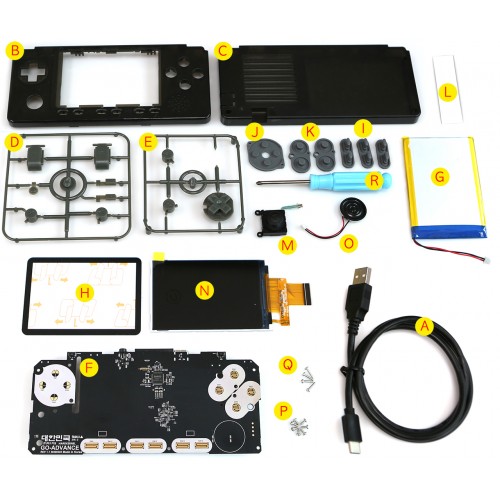

A USB Type-A Power Cable J D-PAD rubber
B Top enclosure K A, B, X, Y button rubber
C Bottom enclosure L battery sticker
D Plastic L/R trigger, X, Y, power button      M Analog joystick
E Plastic D-pad, A, B Buttons N 320×480 TFT LCD
F ODROID-GO-Advance board O 0.5W speaker
G 3000mAh battery P 1.7×5 screws (7 pcs)
H LCD window Q 1.7×8 screws (4 pcs)
I I ~ VI button rubber R Driver

*Note - an 8GB or higher SD Card is required for the operating system.




Further information and access to the operating system / downloads is at the below link:-


ODROID-GO-Advance Wiki


ODROID-GO Advance [80000]

  • Brand: Hard Kernel
  • Product Code: ODROID-GO Advance [80000]
  • Availability: Pre-Order
  • 93.70€

  • Ex Tax: 78.08€
