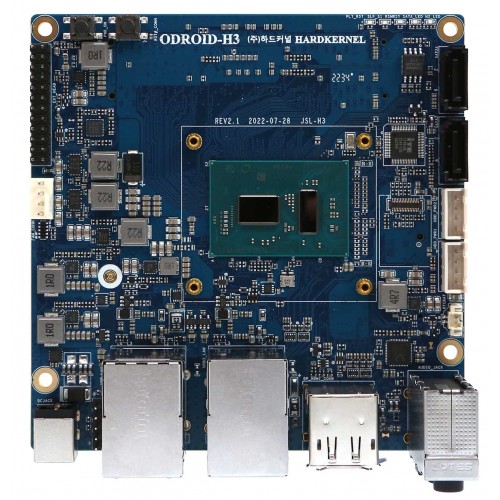

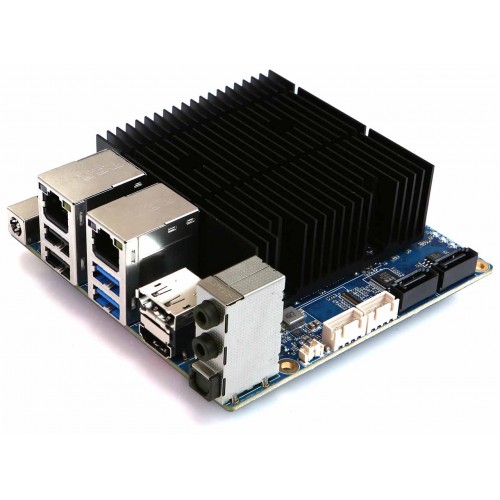

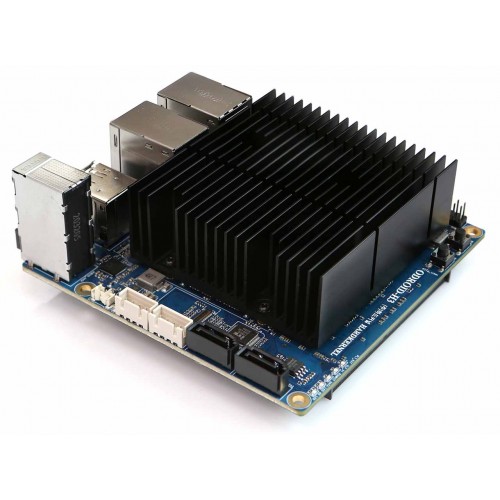

ODROID-H3+ is the next step upgrade from the previous H2+ board, with a new X86 64-Bit chipset, H3+ is more powerful and offers higher performance with similar power efficiency
It has greater compatibility with a larger memory capacity and more advanced IO ports, with the same form factor as its predecessor ODROID-H2.
**WE RECOMMEND PURCHASING THE KINGSTON 16GB DDR4 SODIMM WITH THIS DEVICE**
Features:-
Intel® Quad-Core Processor Jasper Lake N6005 has a base clock of 2GHz and a boost clock of 3.3GHz with 1.5MB L2 and 4MB L3 cache by a 10 nm process.
Up to 64GB Dual-channel Memory DDR4 PC4-23400 (2933MT/s)
Two SO-DIMM slots, up to 32GB per slot
PCIe 3.0 x 4 lanes for one M.2 NVMe storage
2 x 2.5Gbit Ethernet ports
2 x SATA 3.0 ports
SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
Intel UHD Graphics 32 EUs Turbo 900MHz
HDMI 2.0 and DP 1.2 multiple video outputs
A configurable Unlimited Performance mode allowing the CPU to run in sustained turbo boost mode.
RTC / BIOS backup battery is included

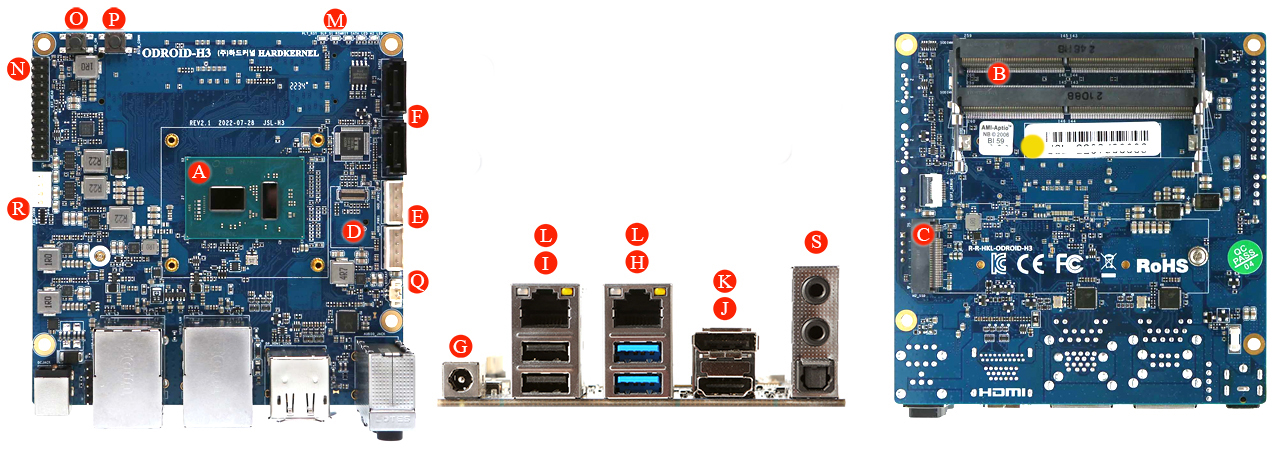

Board Detail
- A. CPU (Intel Celeron N6005)

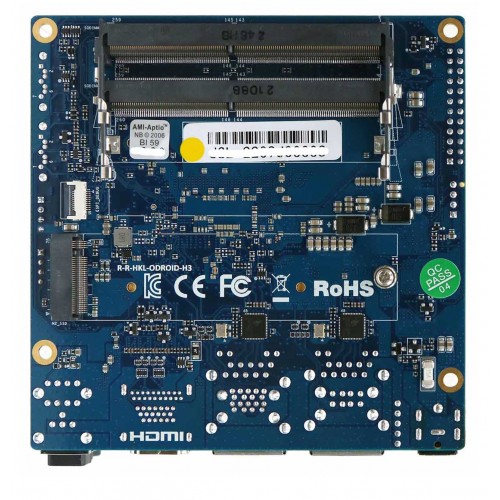

- B. 2 x DDR4 SO-DIMM slots (Dual channel memory support)
- C. 1 x M.2 PCI Express Module Socket (NGFF-2280)
- D. 1 x eMMC (Embedded Multimedia-Card) Socket
- E. 2 x SATA Power Connectors (2.5mm pitch, JST-XH compatible connector)
- F. 2 x SATA3 6.0 Gb/s Data Connectors
- G. 1 x DC Power Jack
- H. 2 x USB 3.0
- I. 2 x USB 2.0
- J. 1 x HDMI 2.0
- K. 1 x DisplayPort 1.2
- L. 2 x RJ45 Ethernet Ports (10/100/1000/2500)
- M. 5 x System LED Indicators
- N. 1 x Peripheral Expansion Header (24-pin)
- O. 1 x Power Switch
- P. 1 x Reset Switch
- Q. 1 x Backup Battery Connector (2-pin)
- R. 1 x Active Cooling Fan Connector (4-pin)
- S. 1 x Audio out, 1 x Audio in, 1 x SPDIF out
Game Emulation Demo Video
Full Specification
Processor | Intel Celeron N6005 Processor (10nm, Quad-Core, TDP 10W) H3+(N6005) : up to 3.3Ghz 4MB L2 Cache Intel UHD Graphics (24/32 EU up to 900MHz) |
Memory | 2 x DDR4 1.2V SO-DIMM slots Dual Channel, up to 2933 MT/s (DDR4-PC23400) Max memory capacity 64GB DDR3/DDR5 are not supported |
Storage | 1 x eMMC connector (bootable and selectable on BIOS) Various eMMC modules can be purchased at Hardkernel store 2 x SATA3 6Gbps 1 x M.2 slot (PCIe 3.0 x 4, supports NGFF-2280 cards) M.2 SATA SSD is not supported |
Networking | 2 x GbE LAN ports (RJ45, supports 10/100/1000/2500 Mbps) Realtek RTL8125B Supports Wake-On-Lan LED indicators (Green: Link, Amber: Traffic) |
Video | 1 x DisplayPort 1.2 (up to 4K@60Hz) 1 x HDMI 2.0 (up to 4K@60Hz) Dual simultaneous display support |
Audio | 1 x Audio out (3.5mm jack) 1 x Audio in (3.5mm jack) 1 x SPDIF out (ALC1200, HDA codec) * HDMI & DP have audio output too. |
External I/O | 2 x USB 3.0 Host ports 2 x USB 2.0 Host ports 1 x Peripheral Expansion Header (24-pin, 2.54mm pitch) – 1 x DC 5V, 1 x DC 3.3V, 5 x GND – 1 x UART (TXD/RXD/RTS/CTS) – 2 x I2C (SCL/SDA) – 1 x External Power Button – HDMI CEC, 5VA+ – 3 x USB 2.0 – All 3.3V I/O signal level |

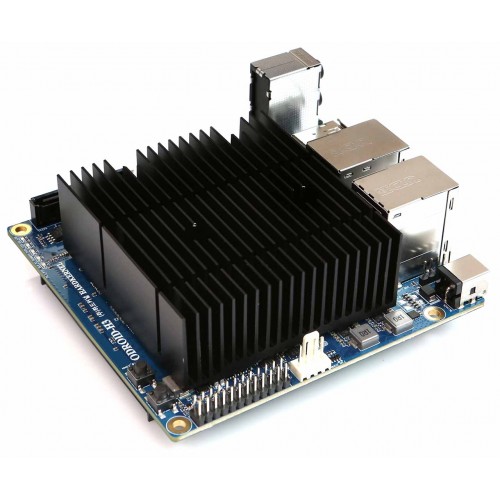

Other features | Passive Heatsink BIOS Backup Battery – Maintains system time and BIOS settings Power Button Reset Button System LEDS Indicators: – Red (PWR) – Solid light when DC power is supplied – Blue (left, SLEEP) – turns off only when the system enters into suspend mode – Blue (right, PMIC) – turns on only when the major power rails are working – Amber (SATA) – Flashes when SATA data transfers – Green (NVMe) – Flashes when NVMe data transfers Active Cooling Fan Connector (12V 4-pin, PWM input + TACHO output) – Active Cooling Fan is optional – Connector (4-pin, 2.54mm pitch) |
Power | DC jack : outer (negative) diameter 5.5mm, inner(positive) diameter 2.1mm DC 14V ~ 20V (up to 60W) – DC 15V/4A power adapter is recommended if you don’t use two 3.5“ HDDs – DC 19V/7A power adapter is recommended if you two 3.5” HDDs together Power consumption: – IDLE : ≃1..9W – CPU Stress : ≃15W – CPU+GPU Stress : ≃18W – Power-off : ≃0.25W – Suspend : ≃0.6W |
Form Factor | 110mm x 110mm x 47mm Approx. |
ODROID-H3+ [83002]
- Brand: Hard Kernel
- Product Code: ODROID-H3+
- Availability: In Stock
-
240.11€
- Ex Tax: 200.09€
