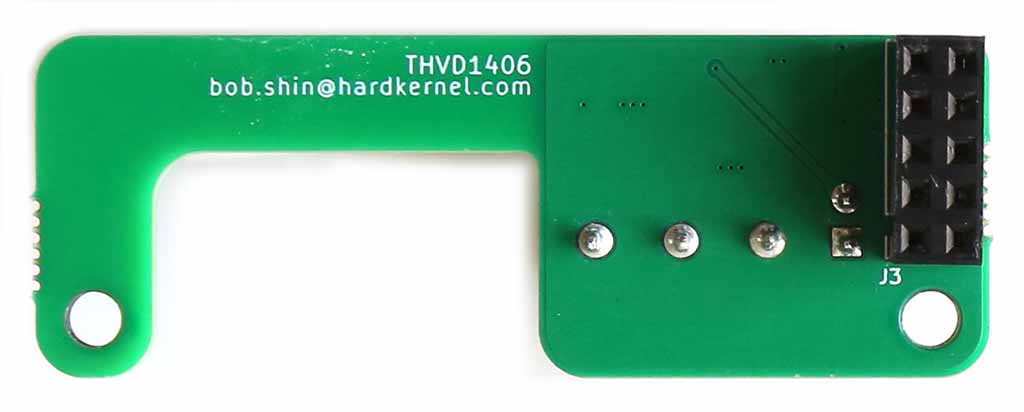

Odroid Ltd RS-485 Add on Board for C5 [120003]

Odroid Ltd RS-485 Add on Board for C5 [120003]
  • RS-485 Add on Board for C5 [120003]
  • RS-485 Add on Board for C5 [120003]
  • RS-485 Add on Board for C5 [120003]
1 3
£8.00 exc VAT £9.60inc VAT , shipping calculated at checkout

10+ in stock

View full details

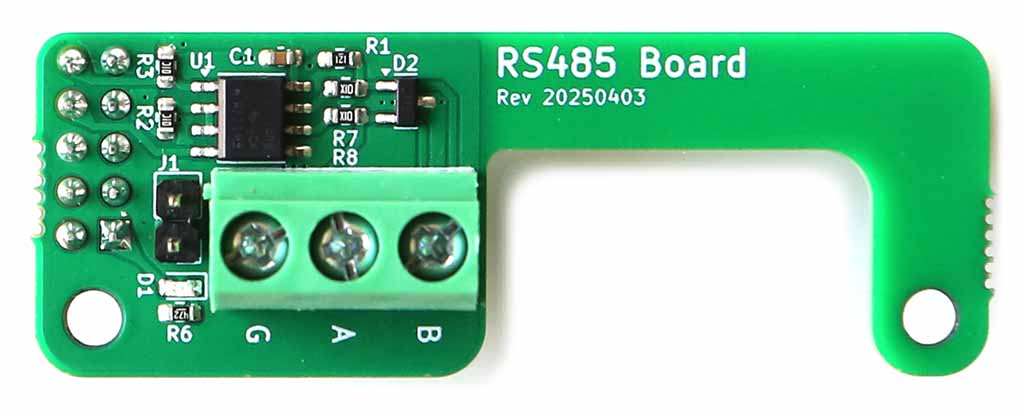

This board is designed to provide RS-485 control to ODROID single board computers, it is easily attachable to GPIO headers and accessible through UART bus.


  • Texas Instruments THVD1406
  • Half-duplex RS-485
  • Auto-direction control using the data input pin (No control pin required)
  • Maximum Data rates: 500 kbps
  • Form Factor Board dimension : 56 (L) x 20 (W) x 21 (H) mm

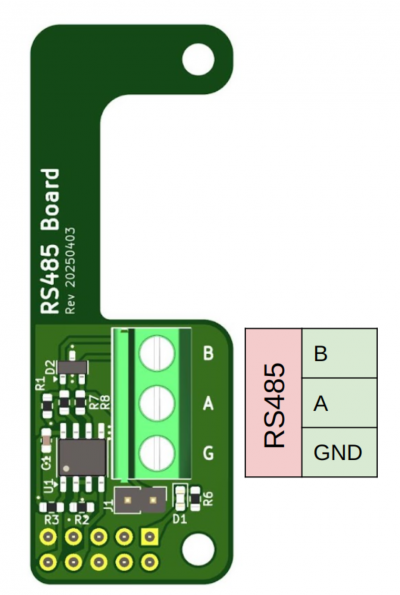

  • I/O 1x RS-485 bus
  • Built-in termination resistor (Use by shorting the j1 connector)
