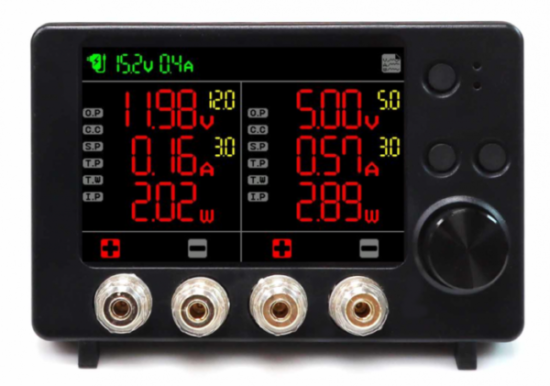

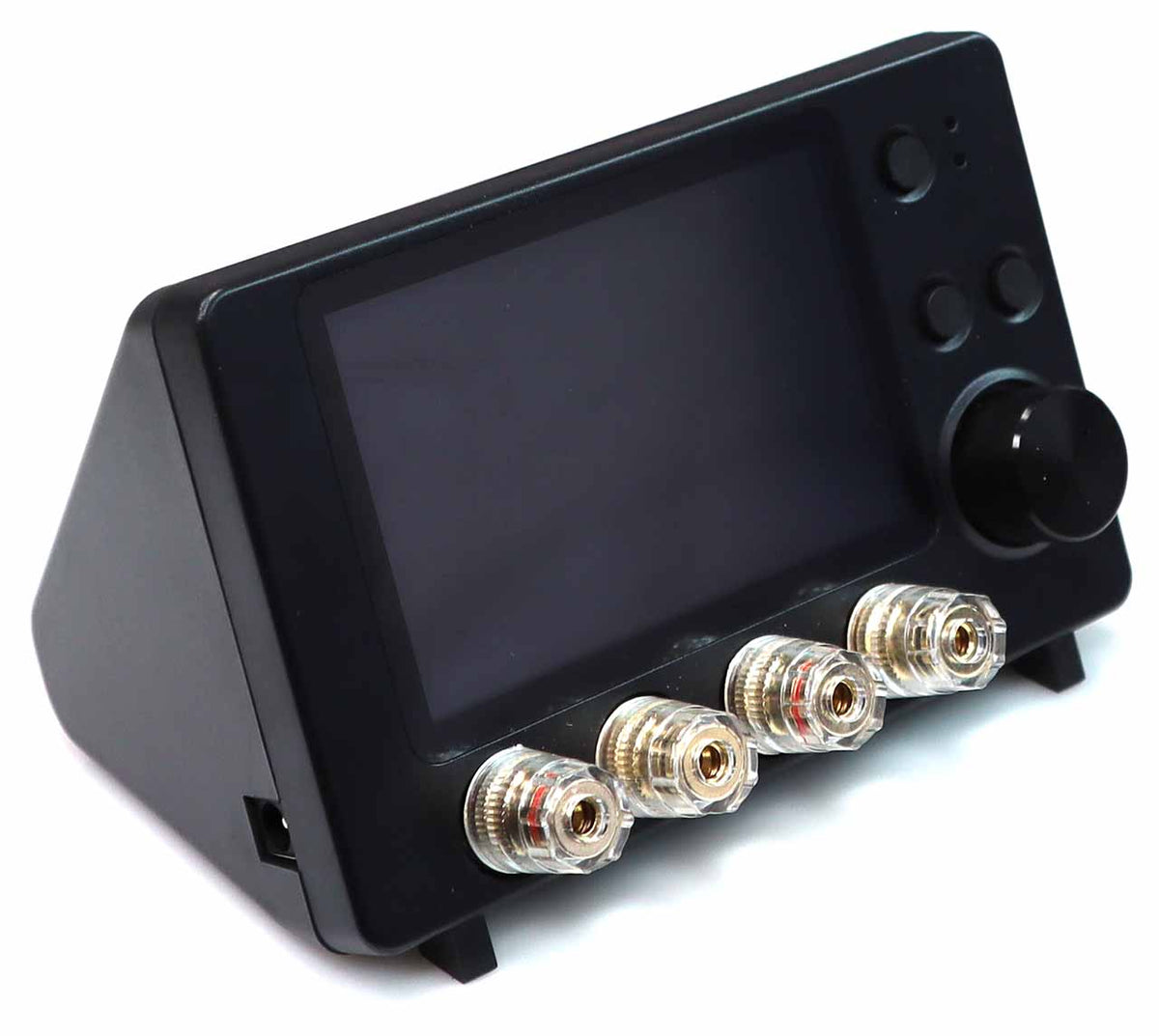

The easy way to make a Green platform. The ODROID Smart Power3 is an easily deployable power supply that collects voltage, current and power of the system load to enable developers to optimize energy consumption. LCD shows voltage, current and watt simultaneously. You can also see the graphical energy transient on your PC via USB interface.


***Discontinued Product***

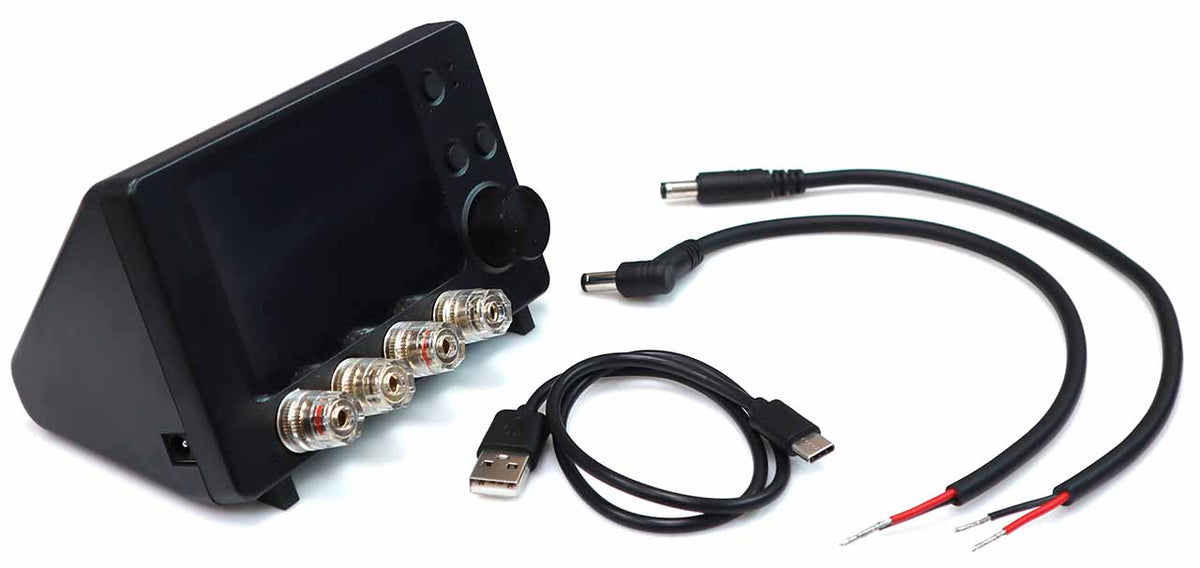

PACKAGE INCLUDES :

ODROID Smart Power3

USB-C data cable

DC plug cable(5.5mm/2.1mm) x 2(L type/S type) for ODROID-XU4/ODROID-N2/ODROID-C4




REQUIRED (NOT INCLUDED) :

Power supply unit


15V4A Power supply (AU, EU, KR, UK, US)  or  19V7A Power supply

(3pin AC power cord is not included for 19V/7A Power supply. You need a generic PC power supply AC power cord.)


----------------------------------------------------------------------------------------------------



Output Channels Two output channels (Max 50W + 50W)
Output Voltage DC 3.0 V ~ Input voltage -1 V
Output Current DC 3A (Max) per channel
Measurement Voltage, Current, Watt : Maximum sampling rate : 200Hz (5msec interval)
Tolerant 3% typical
MCU ESP32-WROOM-32E

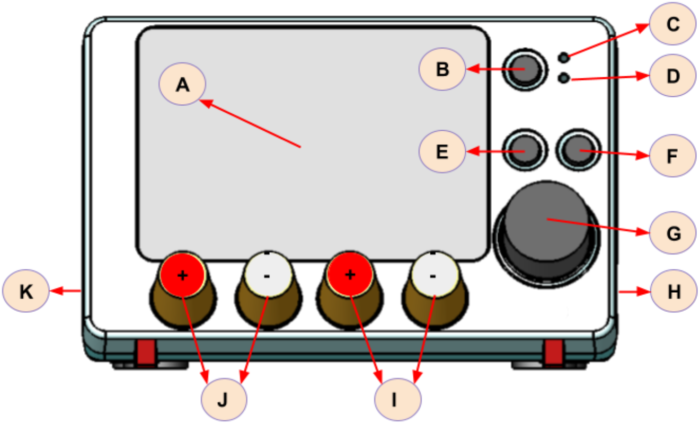

LCD 480×320 3.5“ TFT LCD IPS grade wide viewing angle A
LED RED(Power), BLUE(Alive) C, D
Button ON/OFF/Menu/Cancel, Output Channel On/Off B, E, F
Encoder Button Select/Setup G
Encoder Dial Adjust Voltage and Ampere
USB-C port Data communication with PC (5ms ~ 1s sampling rate), F/W Upgrade H
Output Terminal 4mm diameter banana jack x 2 J, I

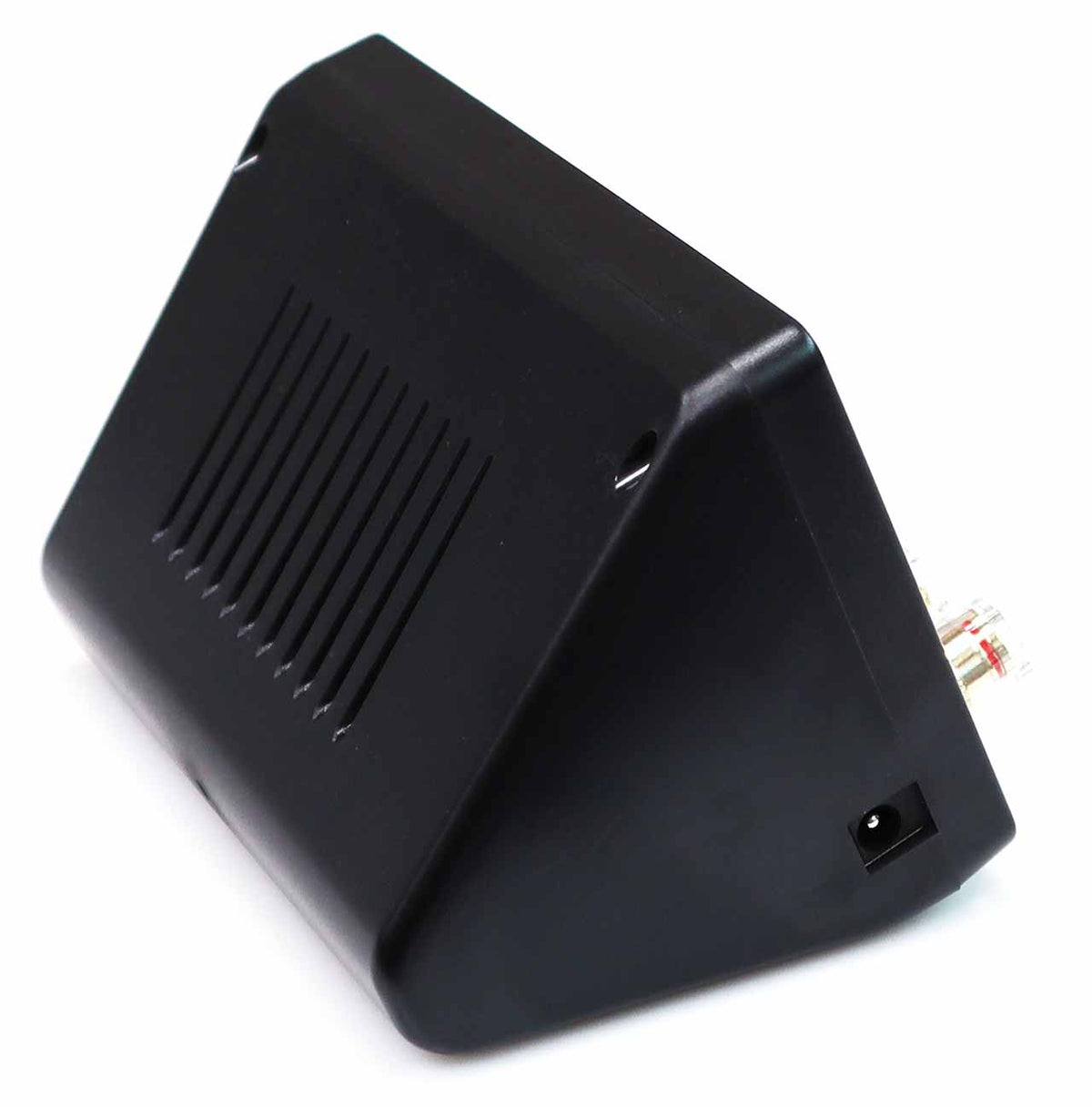

Input Voltage DC 9V ~ 21V K
