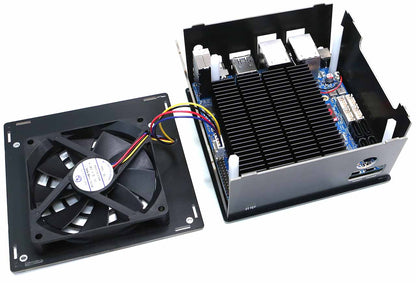

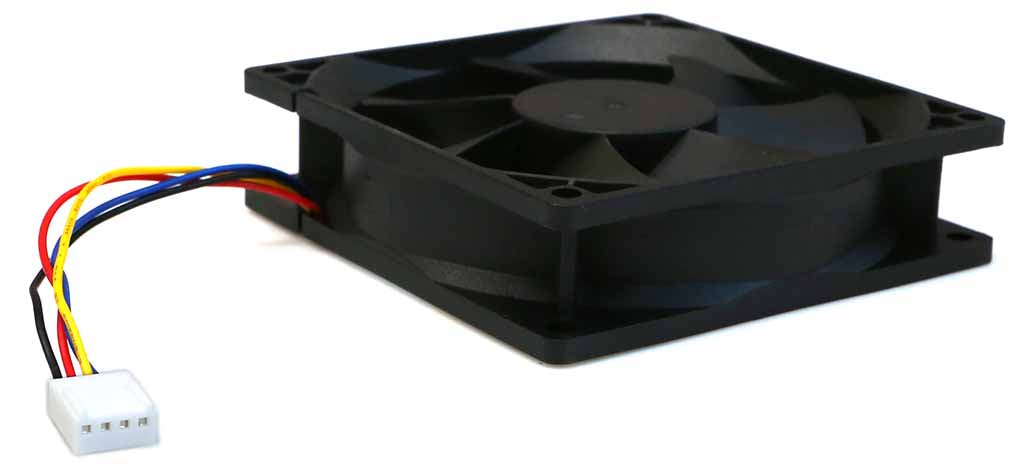

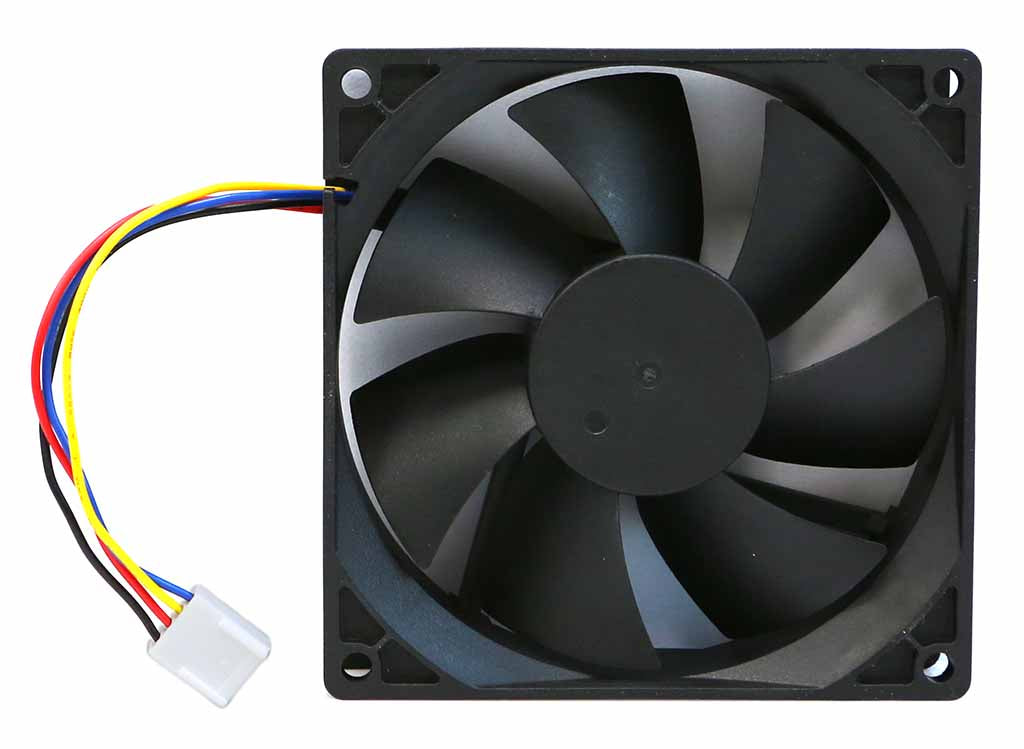

Hardkernel Odroid-H4 DC Cooling Fan w/ PWM

Spec:-

• DC fan size: 92x92x15mm
• Fan speed: 2000 rpm
• PWM control input and tachometer signal output
• Bearing type: Sleeve
• Rated voltage: DC 12V  / 100mA
• Wire length: 250mm

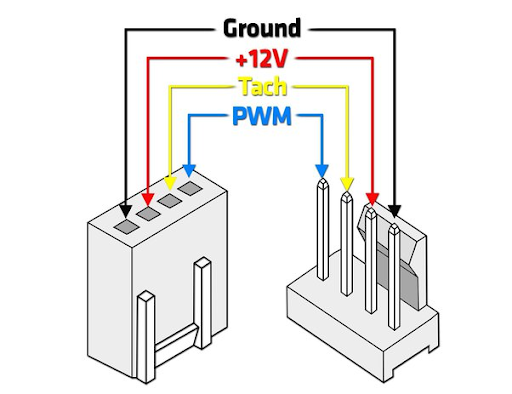

Pin description

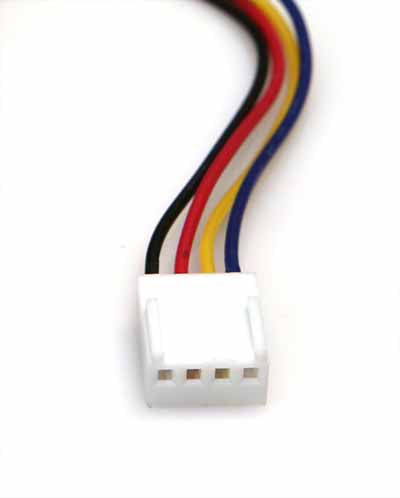

Connector: 4-pin with 2.54mm pitch (Same as the PC standard)

Blue: PWM input

Yellow: Tacho output (Frequency Generator)

Red: DC 12V

Black: Ground

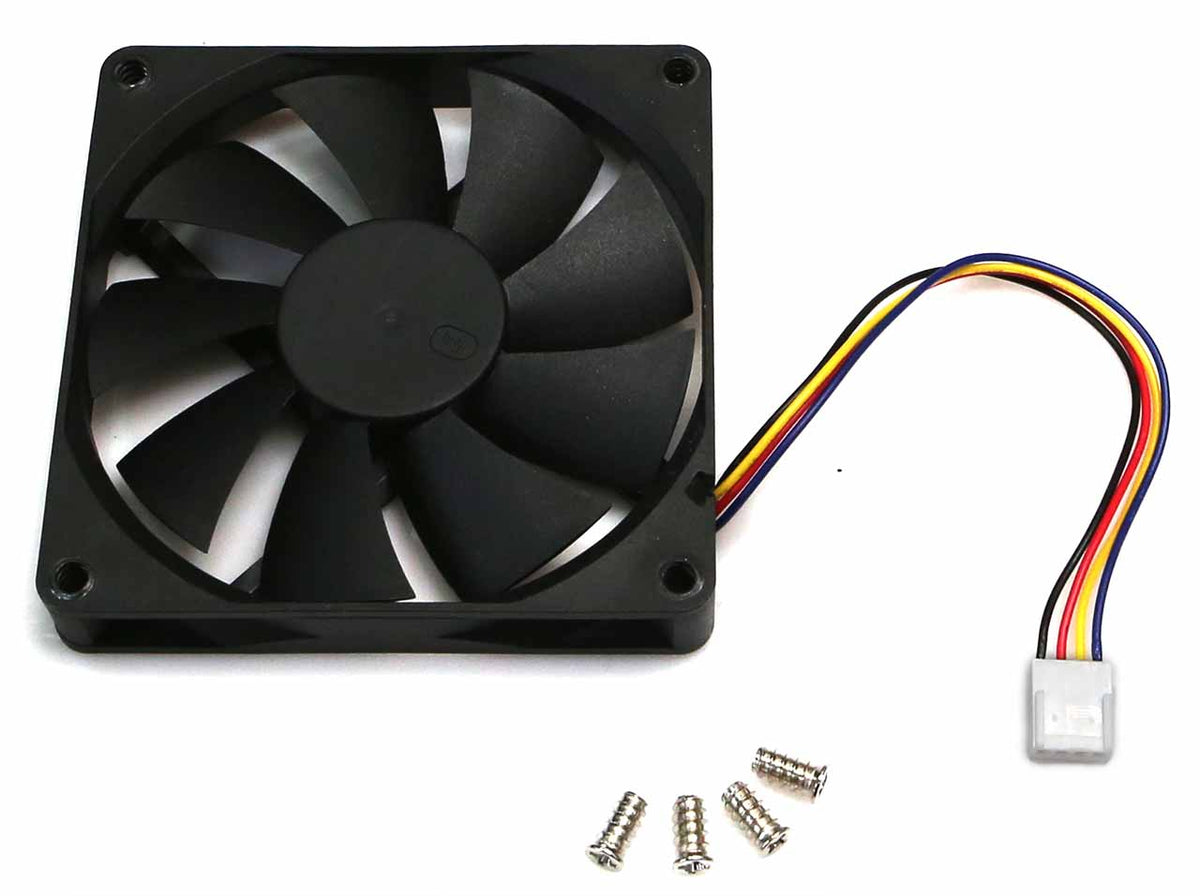

Package contents:-

1 x 92x92mm Cooling Fan (DC 12V)

4 x M5 PC Fan Screws
