Hardkernel LED Power Button for ODROID H2 [78811]

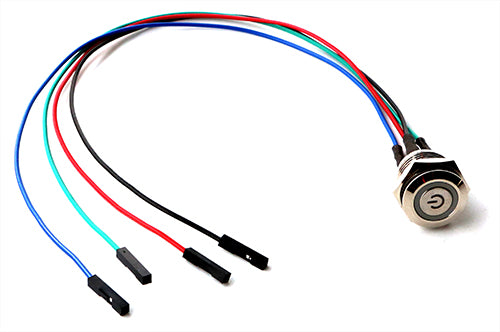

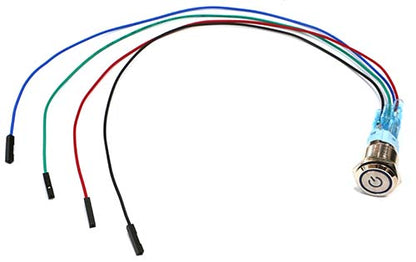

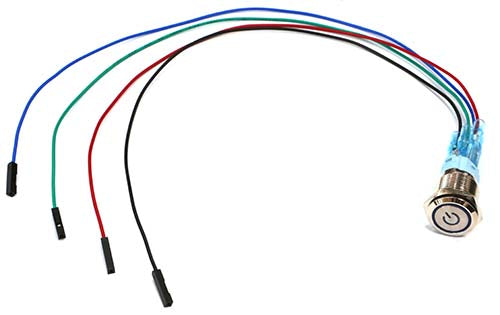

Blue illuminated Power Button with pre-assembled jumper wires.

Cable length : 260-290 mm

There is a small power switch on the ODROID-H2 board. But it is not easy to access the switch when you assemble(place?) the board in to a case. This beautifully illuminated power button is a good solution what you need!

This button can be mounted on the official acrylic case Type-1, Type-2, Type-3 and Type-4.

Note that the blue LED forward voltage must not exceed 3.5Volt.

Red wire: LED positive (Anode) : pin-4 or pin-7 or pin-14 on 20 pin header of ODROID-H2

Black wire: LED negative (Cathode) : GND(pin-1) on 20 pin header of ODROID-H2

Blue wire : Switch-A : #PWR_BTN(pin-17) in 20 pin header of ODROID-H2

Green wire : Switch-B: GND(pin-19) on 20 pin header of ODROID-H2
