£92.99 exc VAT £111.58inc VAT , shipping calculated at checkout

1 in stock

Choose one to continue.
View full details

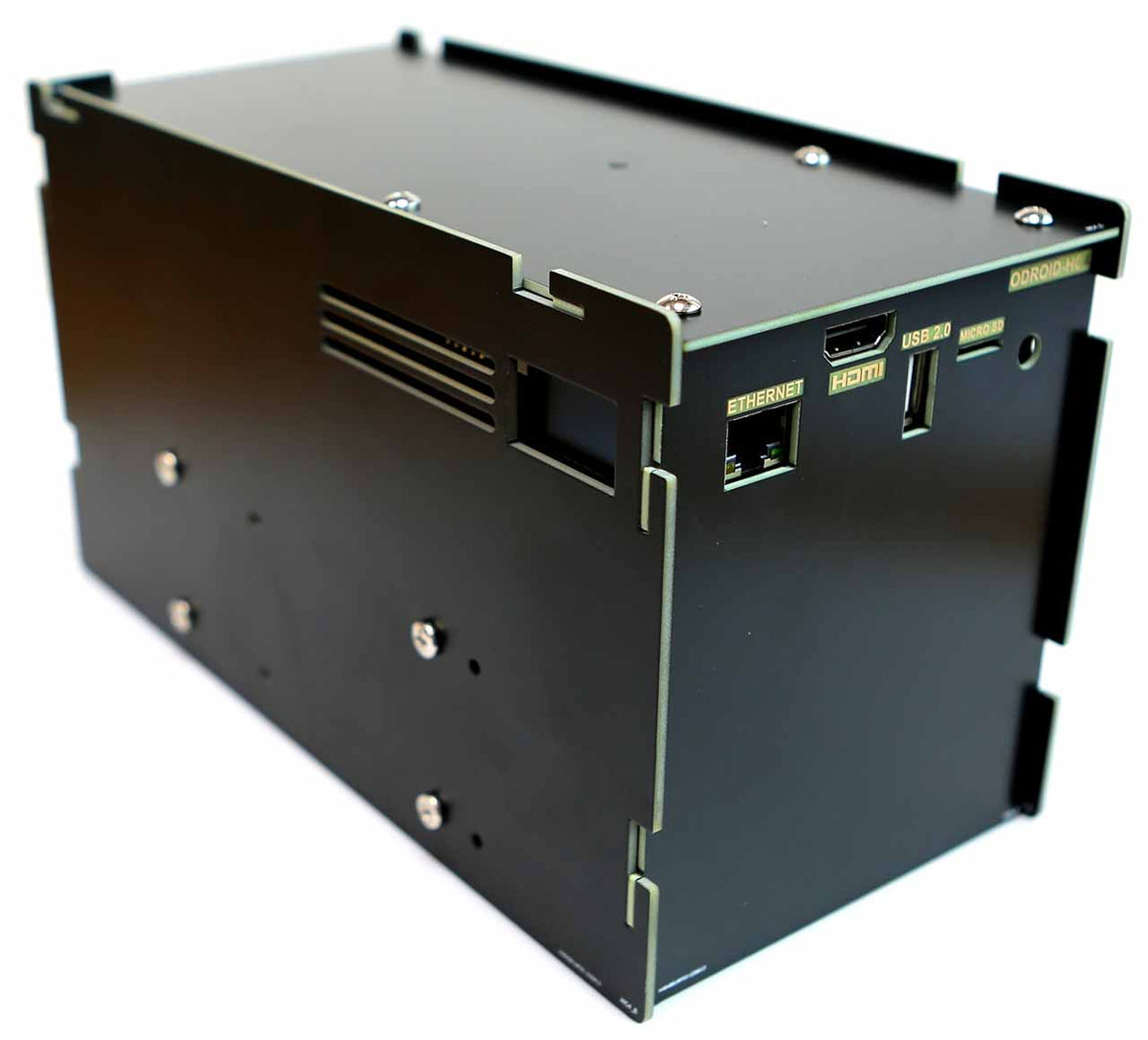

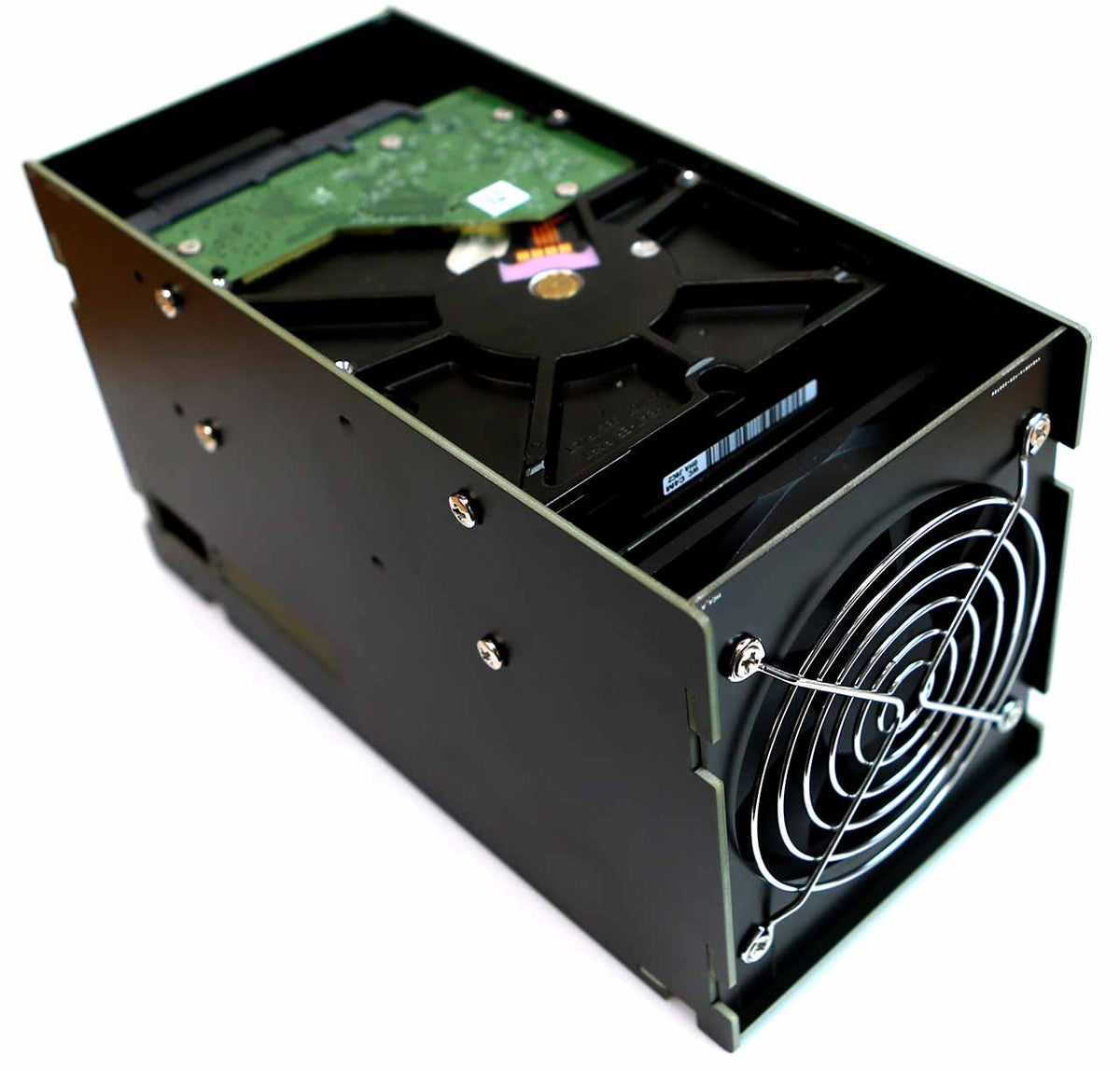

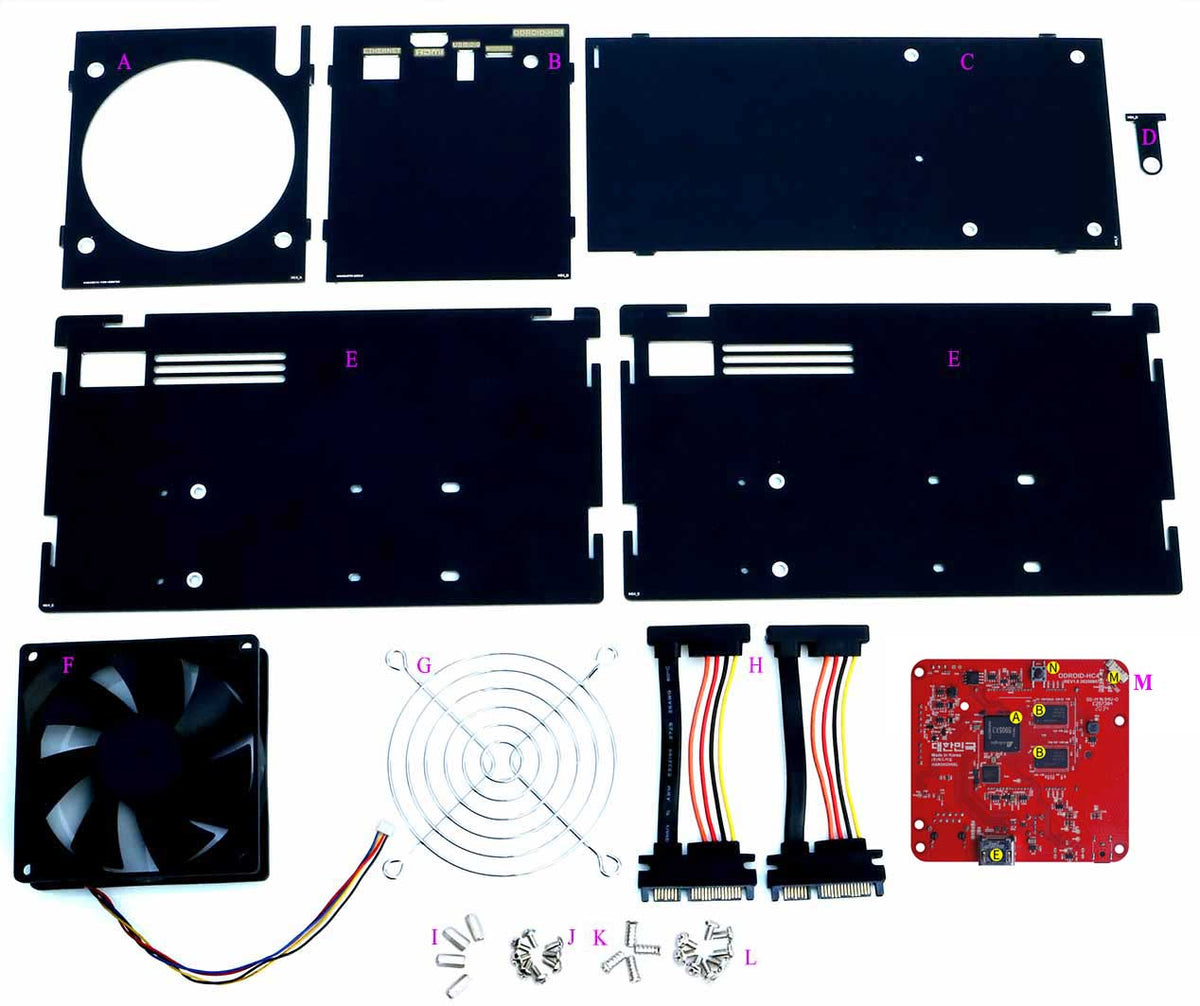

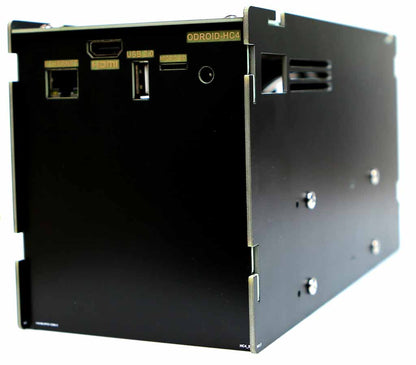

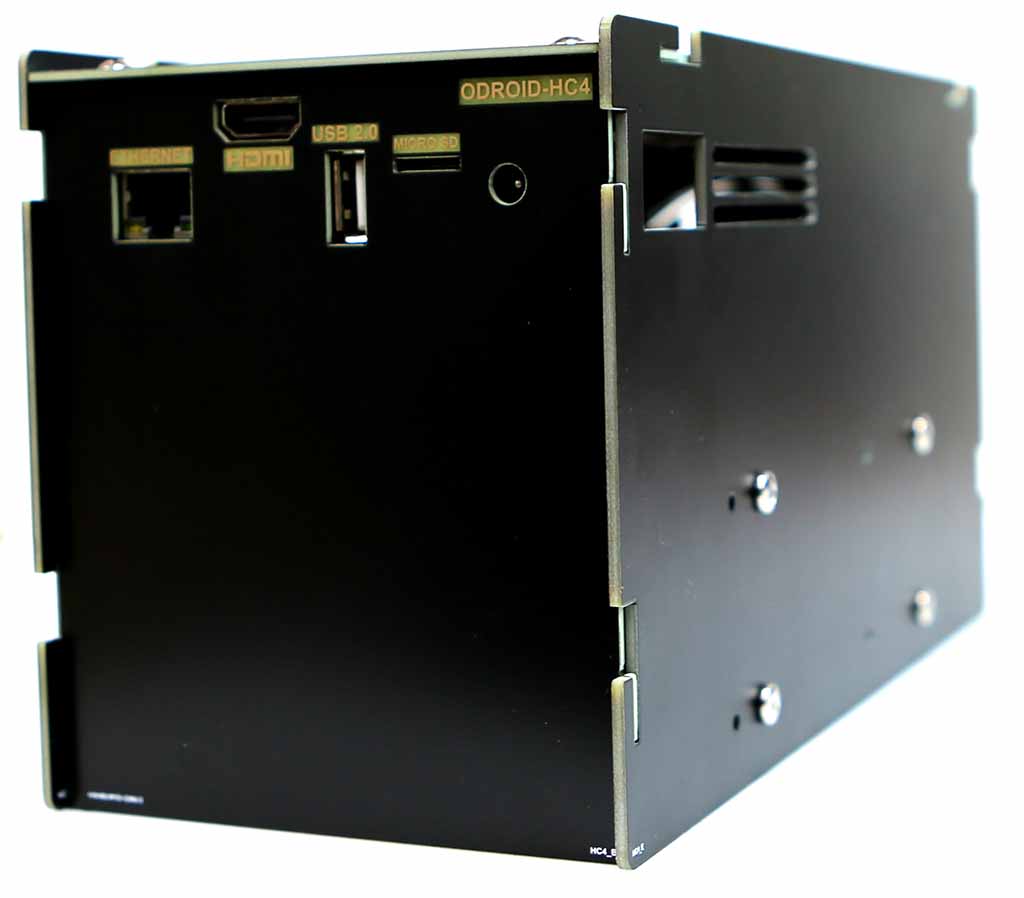

ODROID-HC4-P KIT consists of an ODROID-HC4 board, a case made of rigid PCB which you can mount two 3.5-inch HDDs horizontally in, and includes a cooling fan.

It’s a network storage device that you can build for yourself, and the existing HC4’s Petitboot function and the latest OS versions are supported and can be used without any changes.


**PLEASE NOTE - IF YOU REQUIRE JUST THE TRANSFORMATION KIT FOR AN EXISTING HC4 BOARD (ie - supplied as just the case without the board) PLEASE SELECT THIS FROM THE PULL DOWN AT THE RIGHT.**

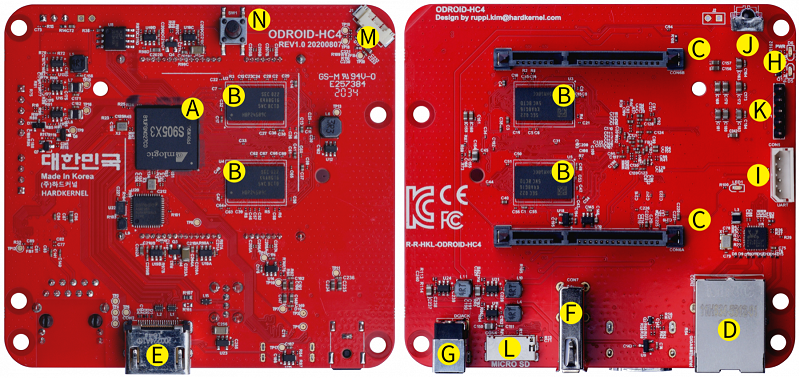

A CPU (Amlogic S905X3) H 2x System LED indicators
B DDR4 memory (4GiB) I 1x UART for system console
C 2x SATA ports J 1x IR receiver
D 1x RJ45 Ethernet port (10/100/1000) K 5x GPIO pins (for optional OLED display)
E 1x HDMI 2.0 L 1x Micro SD slot
F 1x USB 2.0 host port M 1x Cooling fan
G 1x DC power jack (Outer diameter : 5.5mm, inner diameter 2.1mm) N 1x Boot switch


Software Support


Petitboot can find the OS on an SD card, the HDD or the SSD. Even if you do not have an SD card but you have a plugged-in HDD or SSD that has an OS installed, Petitboot will fiond and boot the HC4 using the OS from the HDD or SSD. Debian/Ubuntu OS can run with either Hardkernel’s preinstalled OS image, or Debian/Ubuntu Netboot Installer - which you can obtain from the ODROID forum.


Supported Linux kernel versions:-


4.9.230 or newer (Hardkernel stock OS version)
Mainline kernel 5.15 or newer (Unofficial version from ODROID forum)


Specification


FORM FACTOR Board Dimensions: 84mm x 90.5mm x 25.0mm
Transformation KIT Dimensions : 225mm x 106mm x 127mm
Weight: 615g including board and transformation KIT without HDD
PROCESSOR Amlogic S905X3 Processor
L1 instruction cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor
L1 data cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor
L3 data cache: 512KB , 16-way set associative (512 sets), 64 byte lines, shared by 4 processorsQuad-Core Cortex-A55 (1.800GHz)
ARMv8-A architecture with Neon and Crypto extensions
Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
MEMORY DDR4 4GiB with 32-bit bus width
Data rate: 2640 MT/s (PC4-21333 grade)
1.2Volt low power design
STORAGE 1x Micro SD slot (DS/HS mode up to UHS-I SDR104)
NETWORKING 1 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps)
– Realtek RTL8211F (Ethernet transceiver)
– LED indicators
* Green LED: Flashing by data traffics at 100Mbps connection
* Amber LED: Flashing by data traffics at 1000Mbps connection
VIDEO 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
AUDIO 1 x HDMI digital output

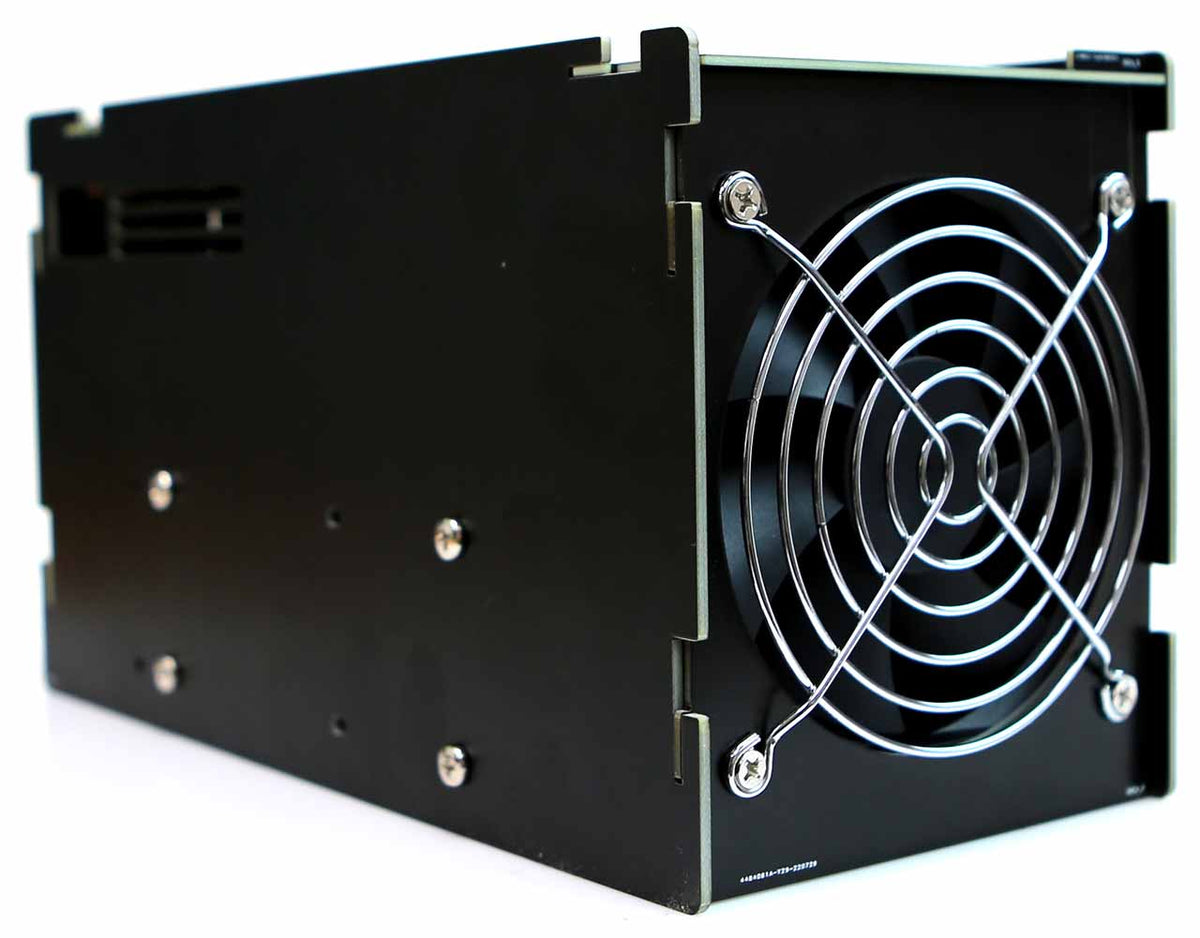

COOLER Passive heatsink ( 40x32x10 mm ) on the CPU of PCB board
Bearing : Hydraulic Bearing FAN
– Rated Voltage : 5V
– Rated Current : 0.2A
– Max Speed RPM : 2000RPM
– Air Flow CFM : 33
– Air Pressure (In H2O) : 0.08
– Noise Level(dBA) : 26.5
– Dimension : 92X92X25MM
– Wire & Connector : 150mm, 4pin 1.25mm pitch
EXTERNAL I/O 1 x USB 2.0 host port
1 x Debug serial console (UART)
2 x SATA Connectors
OTHER FEATURES IR receiver for remote controller
System LED Indicators:
– Red (POWER) – Solid light when DC power is connected
– Blue (ALIVE) – Flashing like heartbeat while Kernel is running.
POWER 1 x DC jack : outer (negative) diameter 5.5mm, inner (positive) diameter 2.1mm
DC input : 14.5V ~ 15.5V
– DC 15V/4A power adaptor is recommended. Sold separately.
Power consumption with two ST2000DM006 HDDs :
– IDLE(with HDD in spin-down) : ≃ 5.88W
– Active(using SAMBA): ≃ 15.59W
– Suspend: ≃ 0.29W
