Hardkernel Odroid H4 / H4+ / Ultra Case Type 3 [20005]

A slightly larger type of case for the Odroid H4 series, the Case Type 3 is a mounting and protective case which is has the additional room for the Odroid Net Card, as well as for 4x 2.5" SATA Hard Drives to be installed. Compatible with all 3 variants of the Odroid H4 board - Odroid H4, Odroid H4+, and Odroid H4 Ultra.

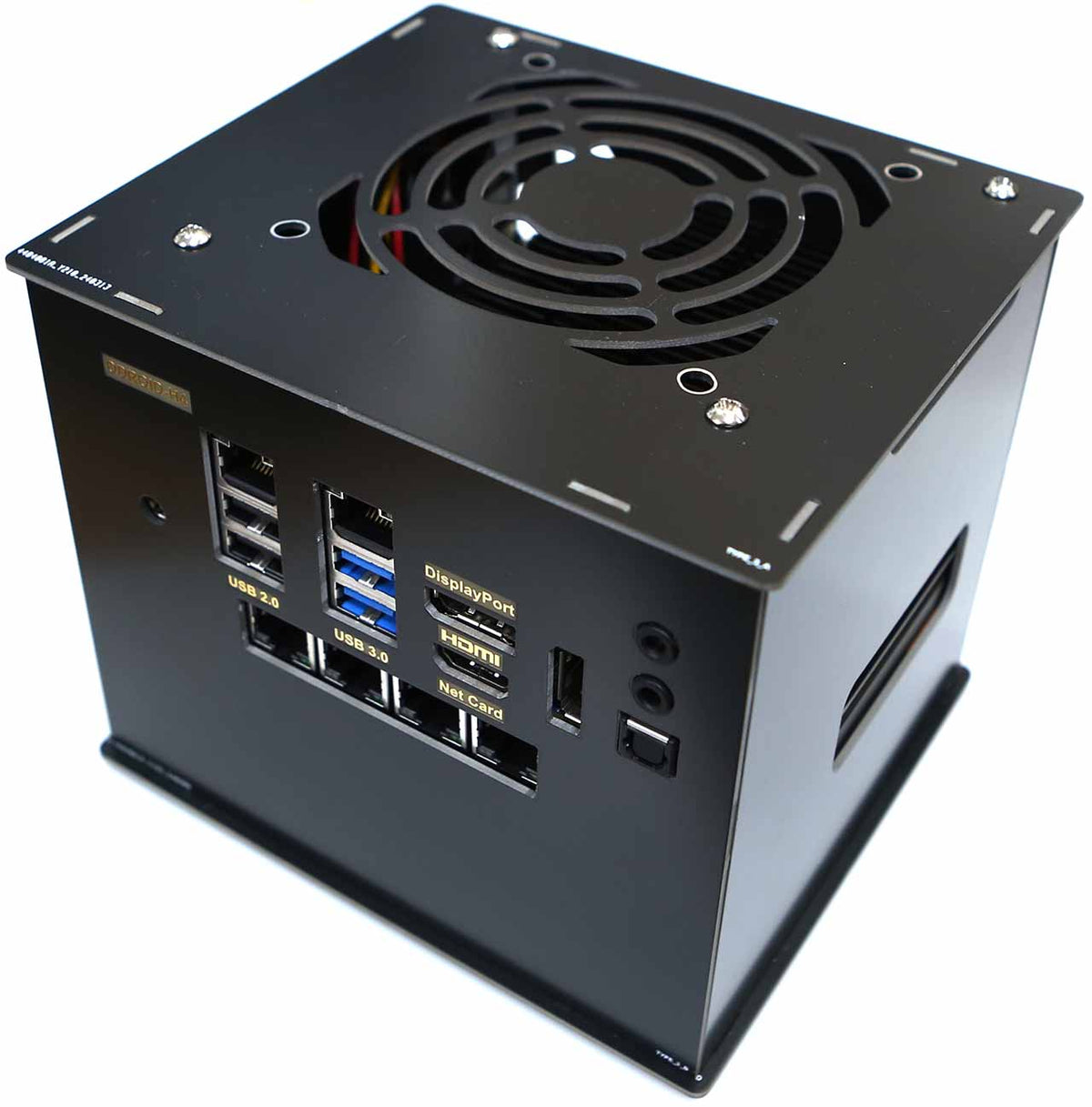

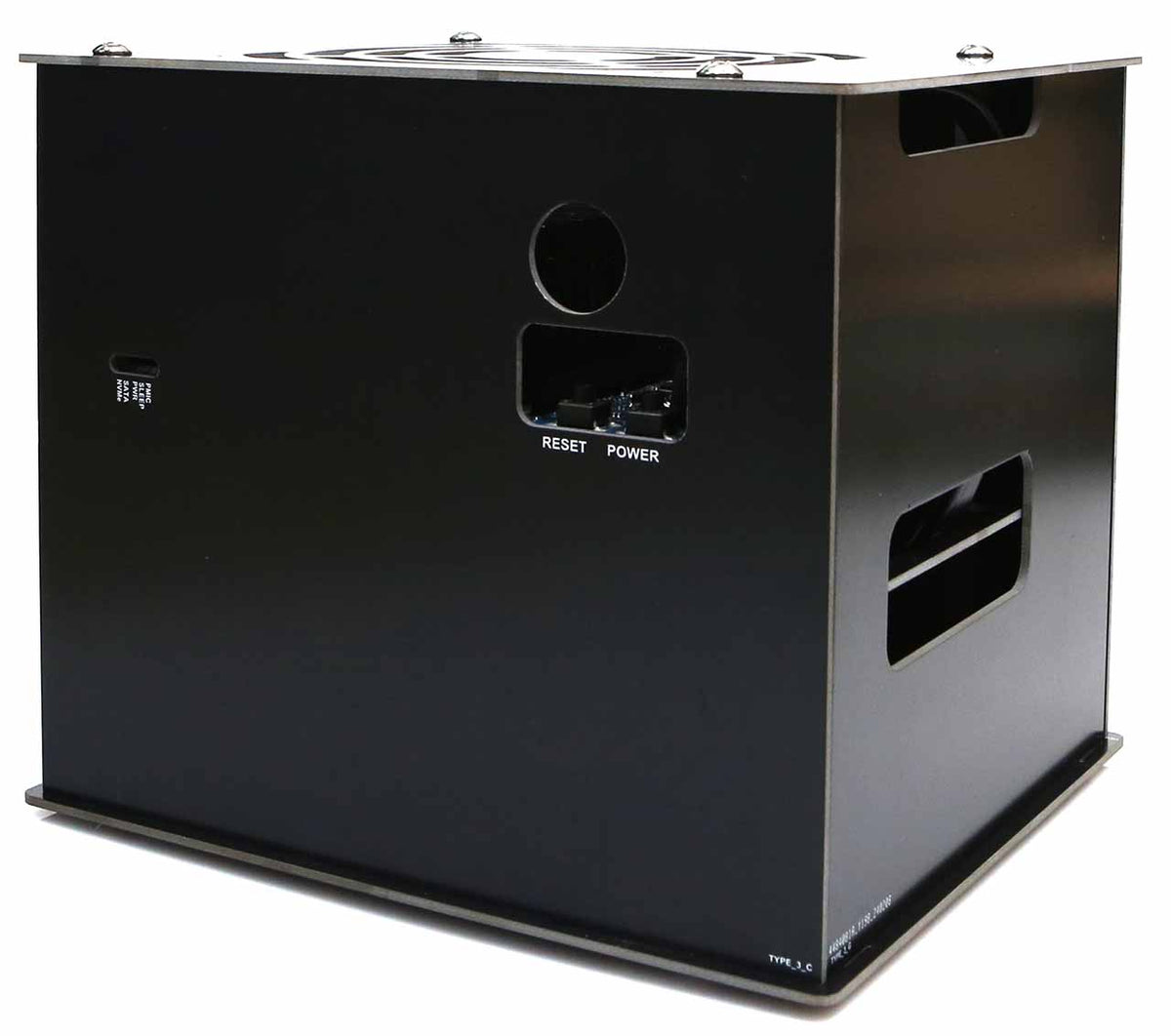

Front Panel

Rear Panel

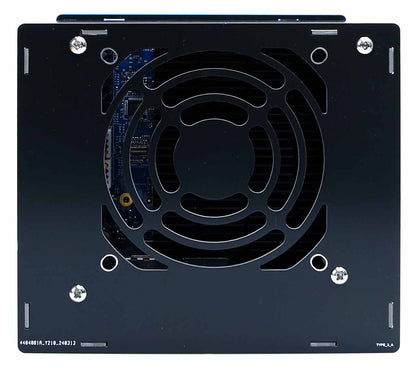

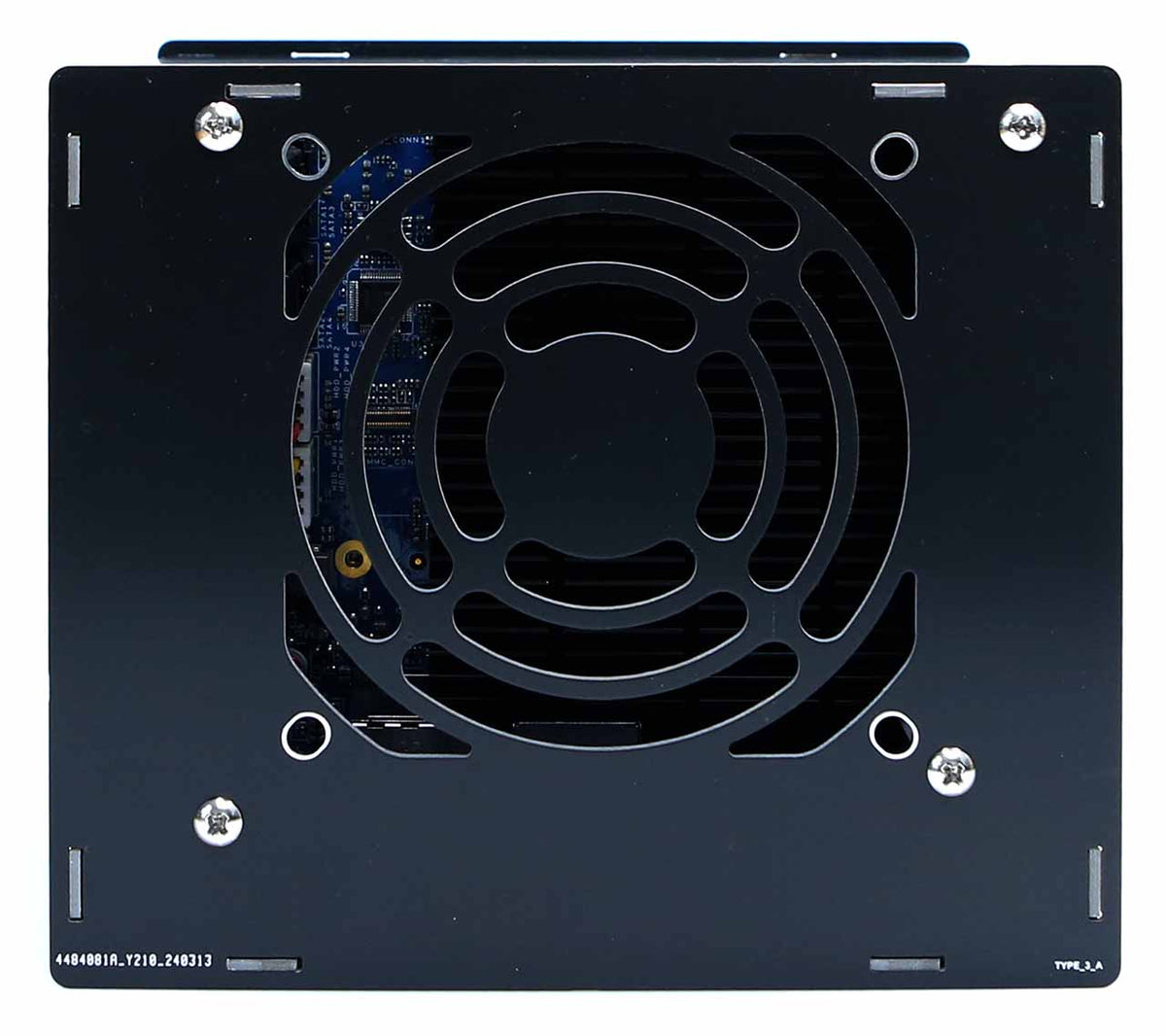

Top of Unit - Note - a Cooling Fan (additionally purchased) can be installed into this space

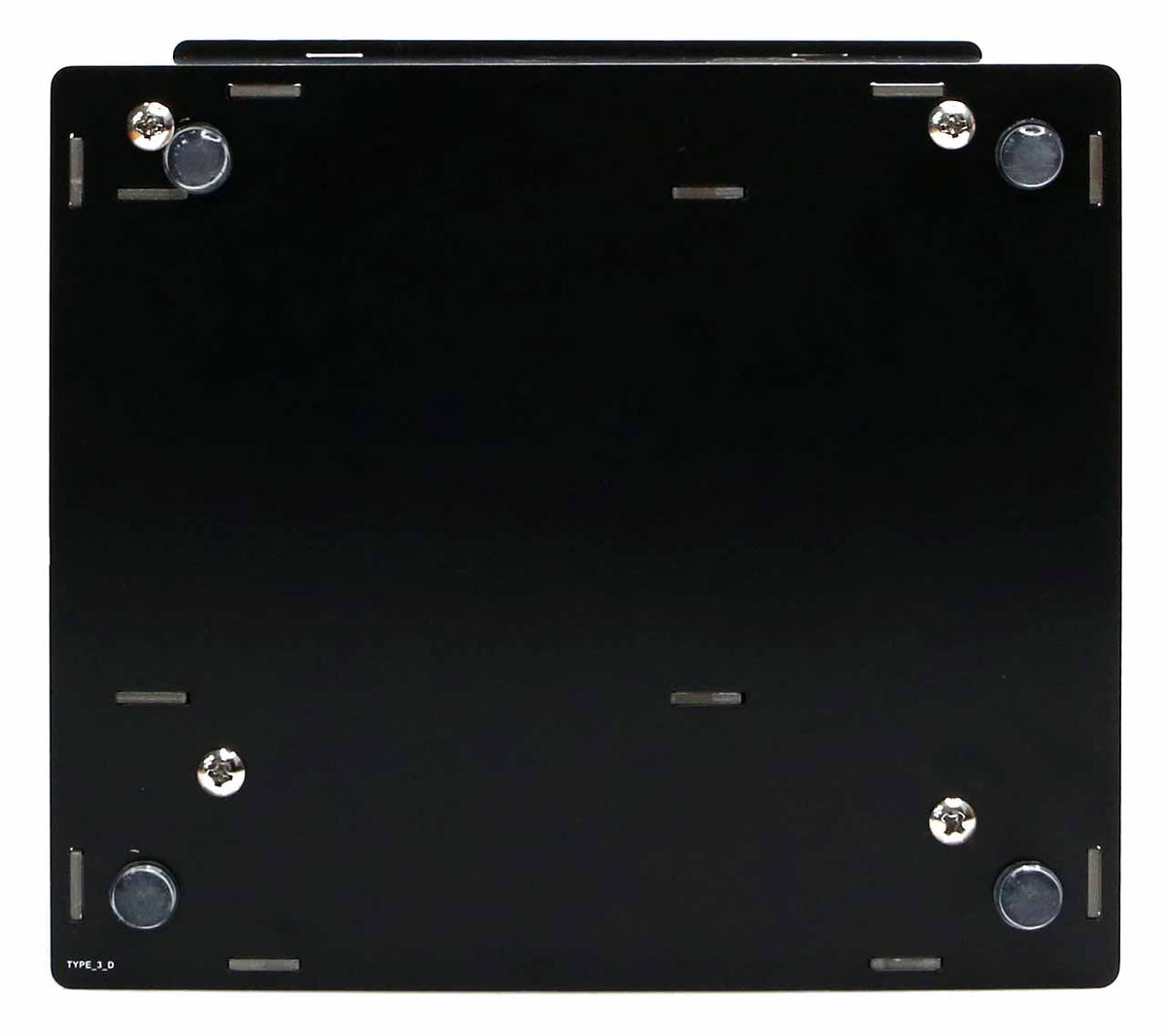

Bottom Of Unit

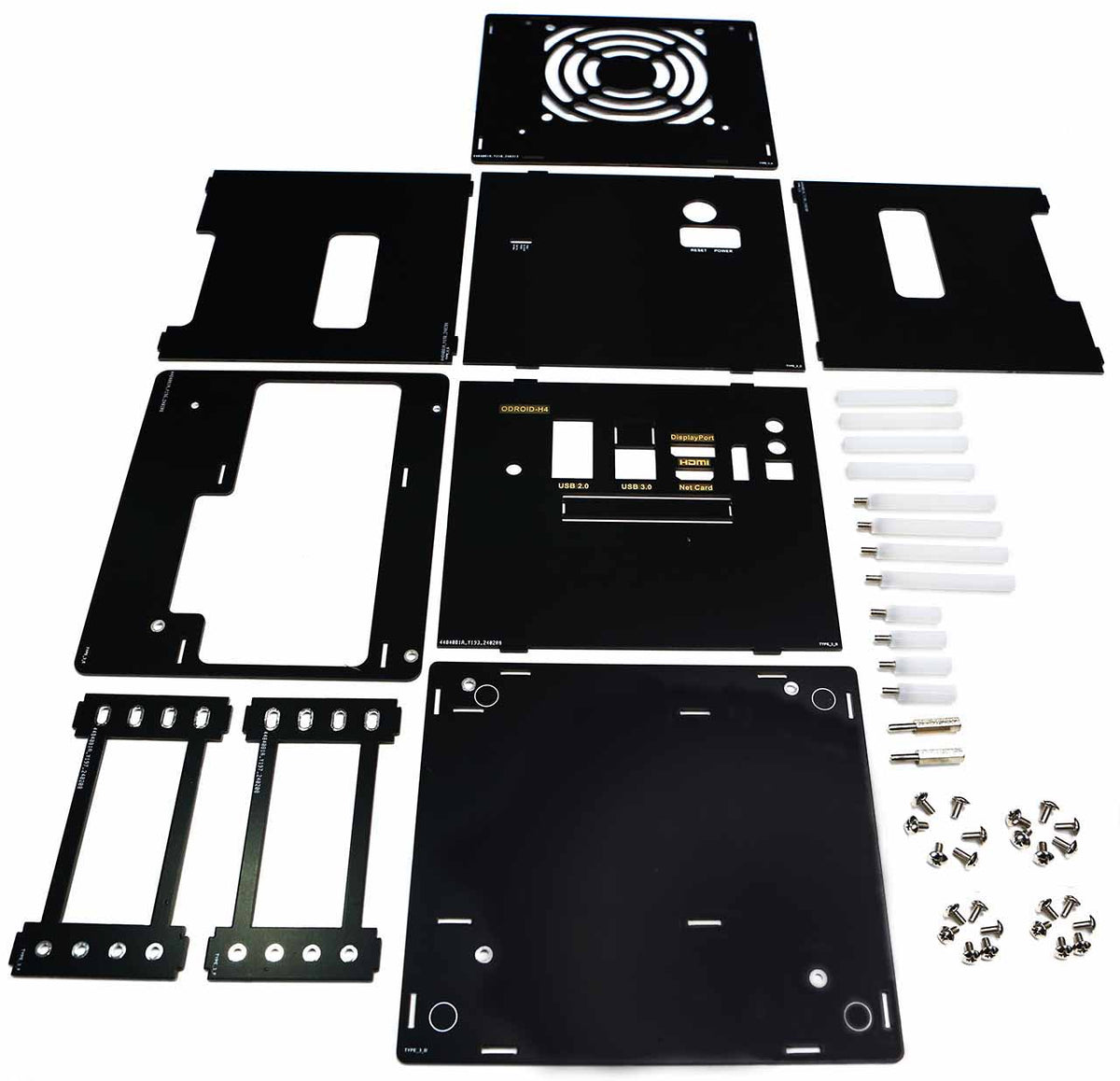

All Included Parts in the Case Kit

Notes:-

Has Space for the Odroid Net Card, and space for 4 x 2.5” SATA drives (max. 15mm thick).

A thin 92x92x15mm cooling fan can be installed internally as an option. Cooling fan is not included in this product.

The hole for the second Ethernet port of H4+ and H4 Ultra is user-configurable: use a cutter to separate it from the rear panel.

This case is not compatible with the H2/H3 series.

*We recommend that you use an electric screwdriver when assembling the cooling fan with this case.

*We recommend that you use SATA Data and Power Cable (200mm) for this product.
