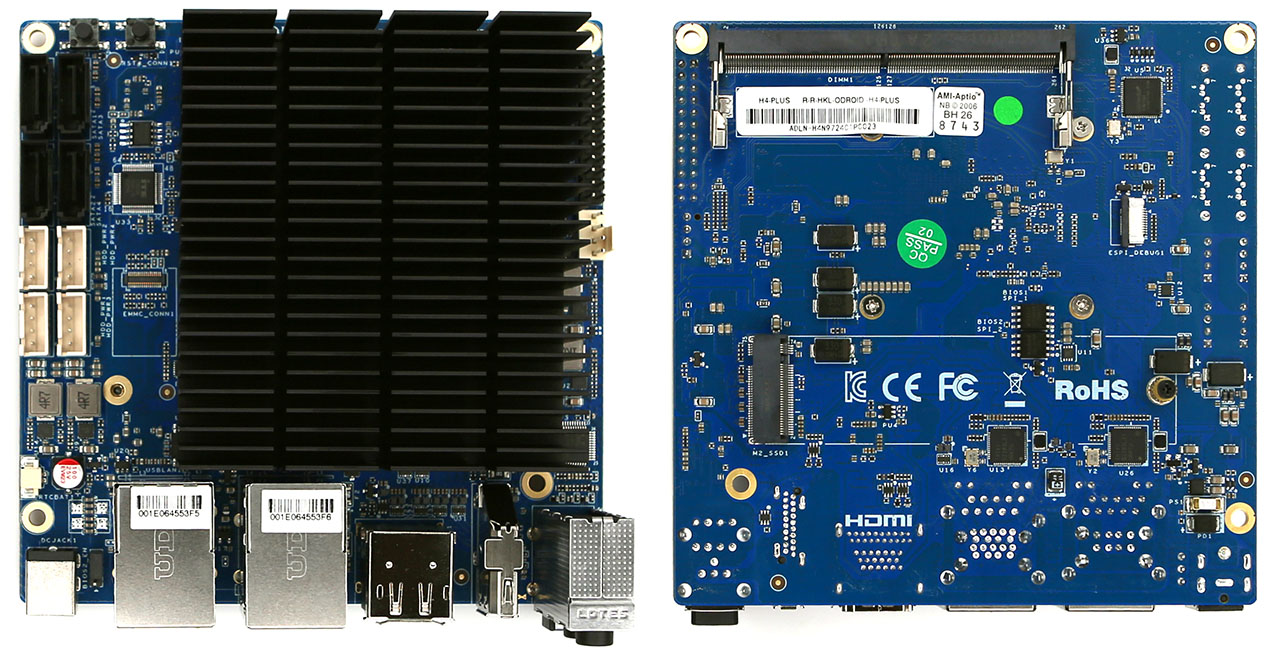

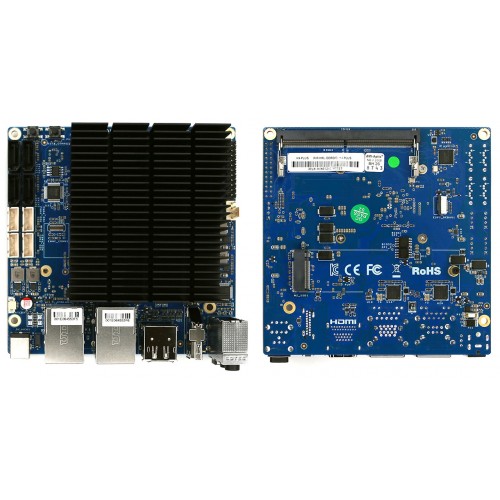

Welcome to the latest iteration of the Odroid H-Series board, the Odroid H4+. This is the best all-rounder of the new generation Odroid H4 Series of boards.

Specifications-wise, the Odroid H4+ has an Intel 4-Core N97 processor, accepts DDR5 SODIMM RAM (up to 48GB), and has options for Dual BIOS installations. It is equipped with four SATA ports, and a second Ethernet port,

making it the best choice for users who need mass storage for high-performance NAS and/or use it for routing capabilities.


**PREORDER NOW FOR DELIVERY MID JUNE**

Click Here For Full System Specification Sheet - Including Full Benchmark Data


Top Line Feature Set Compared to the Odroid H3+:-

  1. Faster CPU architecture - Alder Lake N vs. Jasper Lake. Plus AVX2 extensions.
  2. Faster DRAM interface DDR5 4800 MT/s vs. DDR4 2933 MT/s.
  3. Higher base and boost CPU frequencies and more powerful iGPU.
  4. The increase from 2 to 4 SATA ports allows connection to a greater number of storage devices.
  5. An additional DisplayPort added allows the simultaneous use of up to 3 monitors.


We also implemented little details following the ODROID-H3 feedback we received from all of our users. Examples of this are:

Dual BIOS: If the BIOS is corrupted due to a power outage during update, etc., you can boot into the backup BIOS and recover by moving the jumper next to the DC jack. This feature is only available on ODROID-H4+ and ODROID H4-Ultra.

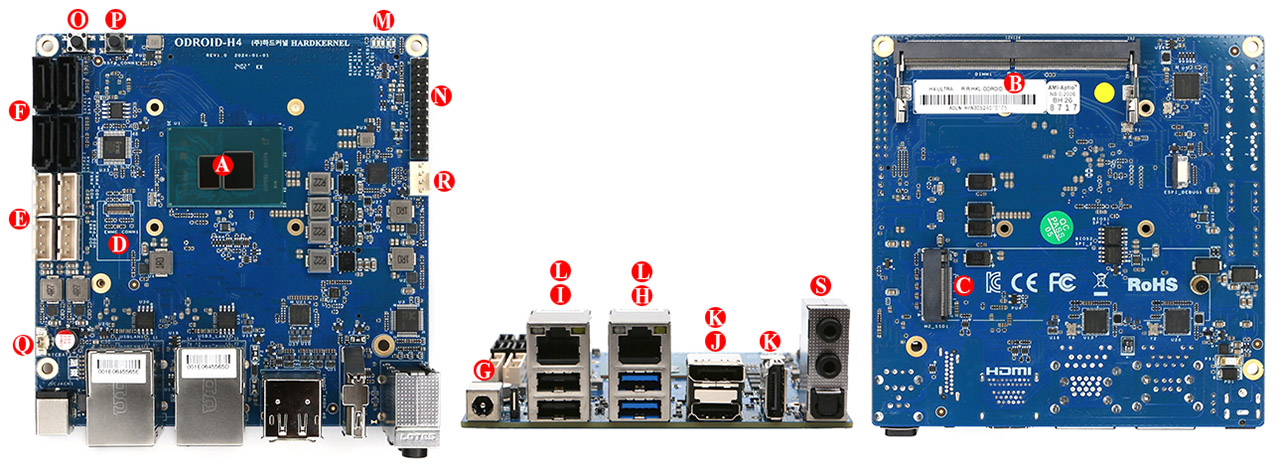

BOARD DETAIL:-




  • A. CPU (Intel N97 or N305 )
  • B. 1 x DDR5 SO-DIMM slots (Single channel memory support)
  • C. 1 x M.2 PCI Express Module Socket (NGFF-2280)
  • D. 1 x eMMC (Embedded Multimedia-Card) Socket
  • E. 4 x SATA Power Connectors (2.5mm pitch, JST-XH compatible connector)
  • F. 4 x SATA3 6.0 Gb/s Data Connectors
  • G. 1 x DC Power Jack
  • H. 2 x USB 3.0
  • I. 2 x USB 2.0
  • J. 1 x HDMI 2.0
  • K. 2 x DisplayPort 1.2
  • L. 2 x RJ45 Ethernet Ports (10/100/1000/2500)
  • M. 5 x System LED Indicators
  • N. 1 x Peripheral Expansion Header (24-pin)
  • O. 1 x Power Switch
  • P. 1 x Reset Switch
  • Q. 1 x Backup Battery Connector (2-pin)
  • R. 1 x Active Cooling Fan Connector (4-pin)
  • S. 1 x Audio out, 1 x Audio in, 1 x SPDIF out

PERFORMANCE VIDEO:-



SPECIFICATION:-


CPU (Intel) Processor N97
Code name Alder Lake-N
Launch date Q1’23
Microarchitecture Gracemont
Cores / Threads 4C4T
Cache 6 MB
AVX2 (Advanced Vector Extensions) Yes
TDP 12W
Single Thread Burst Frequency (GHz) 3.6
Memory
Max. Memory address space (GB) 48
Max. Memory Speed (MT/s) DDR5-4800
iGPU (Intel UHD Graphics)
Burst Frequency (MHz) 1200
Execution Units 24
Video outputs
HDMI 1
DisplayPort 2
PCIe (via NVMe slot)
Generation Gen 3
Lanes 4
Compatibility with optional  Yes
4-ports 2.5GbE
Net Card
IO ports
USB 2.0 2 ports
USB 3.0 2 ports
2.5GbE 1 port
SATA III 4 Ports
24pin IO Expansion ports I2C x 2
  USB 2.0 x 3
  UART x 1
  HDMI-CEC x 1
  Ext. Power Button x 1
Others
Optional Cooling Fan Slim 92-15 or thick 92-25 mm 12 Volt
standard PC 4-pin
Slim fan fits inside the new cases.
Dimensions 120x120mm (4.7×4.7 in)
Recommended Power Supply 1 60W
Recommended Power Supply 2 133W
for supporting booting
with 3.5″ hard disks
Unlimited Performance Mode Yes
Security (TPM 2.0) Yes
Hardkernel H-series cases
The cases are made of solid and sturdy PCBs.DIY assembly
Certifications FCC/CE/KC/RoHS



Odroid H4+ [20001]

  • Brand: Hard Kernel
  • Product Code: Odroid H4+
  • Availability: In Stock
  • 178.02€

  • Ex Tax: 148.35€

Available Options
